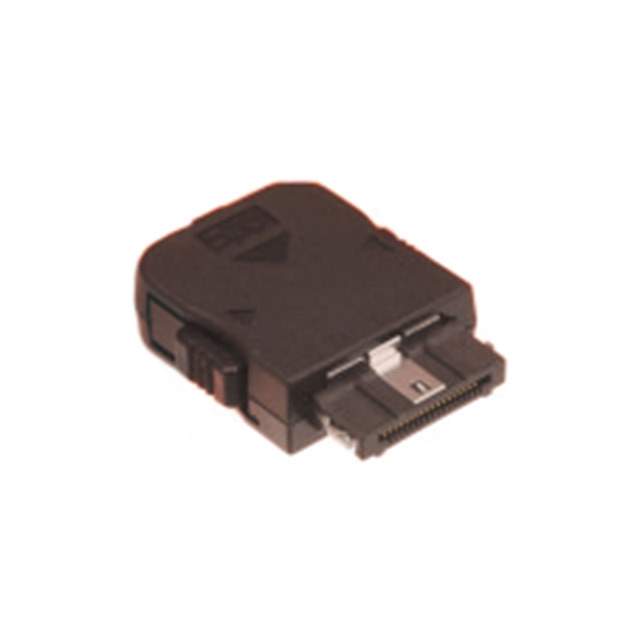

Same model may have multiple batches, images only for reference.

ST40X-18S-CV(81)

Get a Quote

Part No	ST40X-18S-CV(81)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr	Hirose Electric Co Ltd
Series	ST
Package	Tray
Product Status	Obsolete
Connector Type	Plug
Contact Type	Non-Gender Specific
Number of Positions	18
Pitch	0.020" (0.50mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Fastening Type	Lever Lock
Cable Termination	Solder
Wire Type	Discrete
Features	Shielded
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Color	Black
Other Names	241-0012-1-81
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1293393-ST40X-18S-CV(81)
Ultra Librarian 3D Model	Ultra Librarian ST40X-18S-CV(81) CAD Model

Alternative Products

Description

The ST series 1293393-ST40X-18S-CV(81) connector is a free-hanging, panel mount rectangular connector that has 18 positions with a pitch of 0.020" (0.50mm).

Positions: 18
Pitch: 0.020" (0.50mm)
Shielded: Yes
Connector Type: Plug
Contact Type: Non-Gender Specific
Fastening Type: Lever Lock
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Status: Obsolete
Package: Tray
Cable Termination: Solder
Wire Type: Discrete
Mounting Type: Free-Hanging (In-Line)
ECCN: EAR99
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.8000
Manufacturer: Hirose Electric Co Ltd
Other Names: 241-0012-1-81
