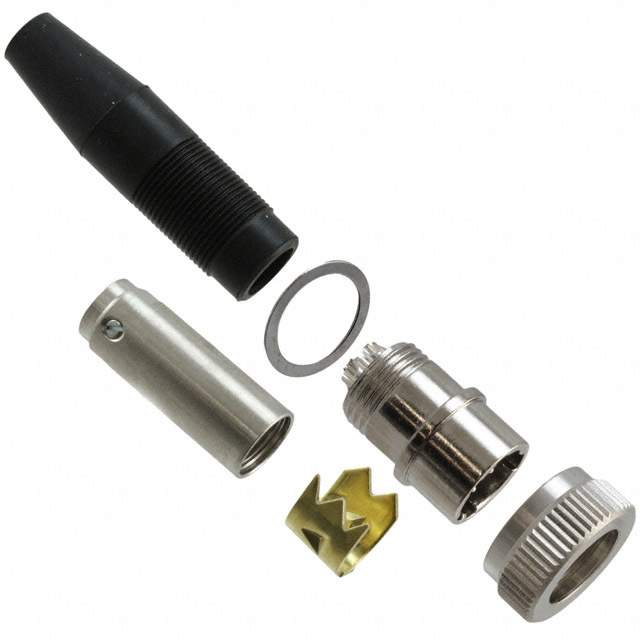

Same model may have multiple batches, images only for reference.

SR30-10PF-7P(71)

Name: SR30-10PF-7P(71)
Brand: Hirose Electric Co Ltd
SKU: 1294209
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SR30-10PF-7P(71)
Manufacturer	Hirose Electric Co Ltd
Catalog	Circular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Circular Connectors
Mfr	Hirose Electric Co Ltd
Series	SR30
Package	Bulk
Connector Type	Plug, Male Pins
Number of Positions	7
Shell Size - Insert	10
Mounting Type	Free Hanging (In-Line)
Termination	Solder Cup
Fastening Type	Threaded
Orientation	Keyed
Primary Material	Metal
Shell Material	Zinc Alloy
Shell Finish	Nickel
Contact Finish - Mating	Silver
Color	Black, Silver
Features	Backshell, Clamp, Coupling Nut, Strain Relief
Shielding	Unshielded
Current Rating (Amps)	1A
Voltage Rating	100VAC, 140VDC
Temperature Range - Operating	-10°C ~ 60°C
Backshell Material, Plating	Brass, Nickel
Contact Material	Brass
Contact Finish Thickness - Mating	118.1µin (3.00µm)
Insert Material	Polyacetal
Applications	Radio
Base Product Number	SR30
Other Names	1030316171,HR1723,*SR30-10PF-7P(71),Q8446874,SR3010PF7P71
Standard Package	20
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4020
Win Source Part Number	1294209-SR30-10PF-7P(71)
Ultra Librarian 3D Model	Ultra Librarian SR30-10PF-7P(71) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd SR30-10PF-7P(71) is a circular connector with a plug, male pins connector type and a solder cup termination.

Connector Type: Plug, Male Pins
Termination: Solder Cup
Voltage Rating: 100VAC and 140VDC
Shell Size Insert: 10
Shell Material: Zinc Alloy with a Nickel Finish
Package Includes: Backshell, Clamp, Coupling Nut, and Strain Relief
Orientation: Keyed
Mounting Type: Free Hanging (In-Line)
ECCN: EAR99
Compliant with: HTSUS
