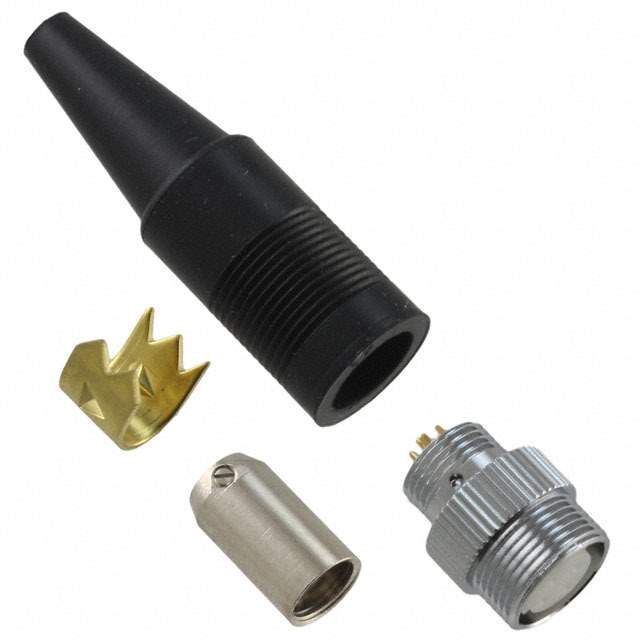

SR30-10JE-4S(71) Real Image
Same model may have multiple batches, images only for reference.

SR30-10JE-4S(71)

Part No SR30-10JE-4S(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors
Description CONN JACK FMALE 4P GOLD SLDR CUP / 4 Position Circular Connector Jack, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Hirose Electric Co Ltd
Series SR30
Package Bulk
Connector Type Jack, Female Sockets
Number of Positions 4
Shell Size - Insert 10
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Brass
Shell Finish Chrome
Contact Finish - Mating Gold
Color Black, Silver
Features Backshell, Clamp, Strain Relief
Shielding Unshielded
Current Rating (Amps) 1A
Voltage Rating 100VAC, 140VDC
Temperature Range - Operating -10°C ~ 60°C
Backshell Material, Plating Brass, Nickel
Contact Material Copper Alloy
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyacetal
Applications Radio
Base Product Number SR30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names *SR30-10JE-4S(71),1030301471,HR1722,SR3010JE4S71
Standard Package 20
Win Source Part Number 1033333-SR30-10JE-4S(71)
Ultra Librarian 3D Model Ultra Librarian SR30-10JE-4S(71) CAD Model

Description

The Hirose Electric Co Ltd SR30 series is a 4 position circular connector with a jack, female sockets connector type.

  • Connector Type: jack, female sockets
  • Number of Positions: 4
  • Termination: solder cup
  • Mating: threaded
  • Package: bulk
  • Contact Material: copper alloy
  • Voltage Rating: 100VAC and 140VDC
  • Shielding: unshielded
  • Ingress Protection: none
  • Orientation: keyed
  • Shell Size Insert: 10
  • Contact Finish: gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Category: Connectors
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4020
