Same model may have multiple batches, images only for reference.

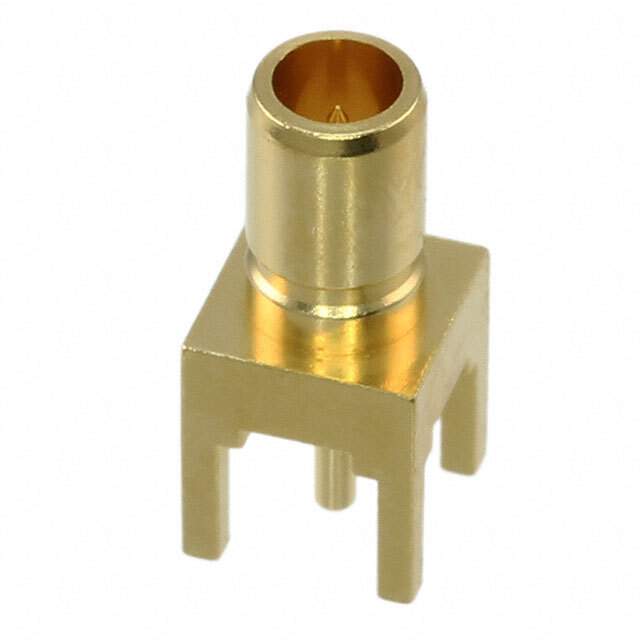

PL75-R-PC Real Image
Same model may have multiple batches, images only for reference.

PL75-R-PC

Part No PL75-R-PC
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description CONN UMC RCPT STR 75 OHM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features Ultra Miniature (UM) Connector Receptacle, Male Pin 75Ohm Through Hole Solder
Manufacturer Hirose Electric Co Ltd
Series PL75
Package Bulk
Operating Temperature Range -30°C ~ 85°C
Mounting Through Hole
Family Name PL75
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 334-0081-4-00, *PL75-R-PC-ND, *PL75-R-PC, -PL75-R-PC, H124304, PL75-R-PC-ND
Quantity per package 20
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930690-PL75-R-PC
Ultra Librarian 3D Model Ultra Librarian PL75-R-PC CAD Model

Description

The Hirose Electric Co Ltd PL75-R-PC is an ultra miniature (UM) connector receptacle with male pin 75Ohm through hole solder.

  • Series: PL75
  • Packaging: Bulk
  • Mounting Type: Through Hole
  • Operating Temperature Range: -30°C to 85°C
  • Category: Connectors
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Quantity per Package: 20
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 25 weeks
  • HTSUS Code: 8536.69.4010
