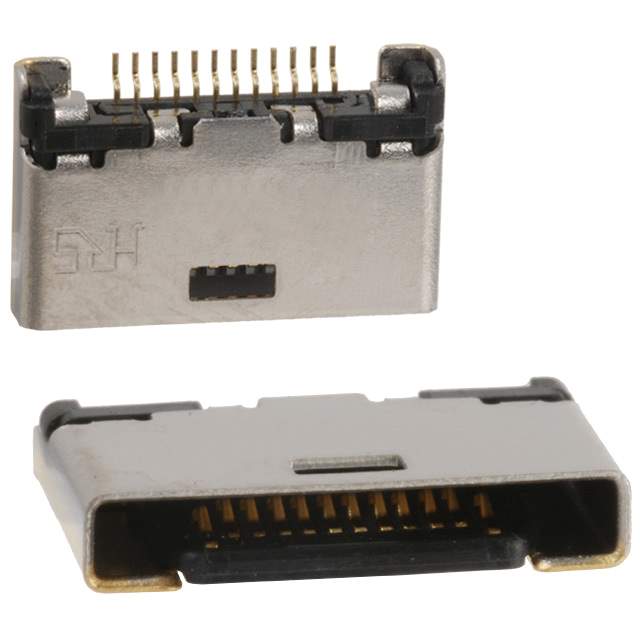

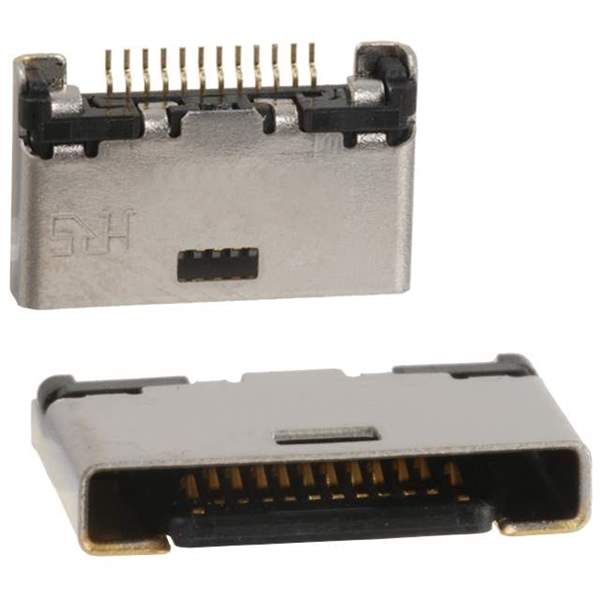

Same model may have multiple batches, images only for reference.

LX60-12S

Name: LX60-12S
Brand: Hirose Electric Co Ltd
SKU: 1316320
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LX60-12S
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Datasheet	LX60-12S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	LX
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Center Strip Contact
Style	Board to Cable/Wire
Number of Positions	12
Number of Positions Loaded	All
Pitch - Mating	0.020" (0.50mm)
Number of Rows	1
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	12.0µin (0.30µm)
Insulation Color	Black
Insulation Height	0.079" (2.00mm)
Temperature Range - Operating	-40°C ~ 70°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Board Guide
Current Rating (Amps)	0.5A
Voltage Rating	50VAC
Applications	General Purpose, Telecommunications
Insulation Material	Polyamide (PA9T), Nylon 9T
Contact Material	Copper Alloy
Contact Finish Thickness - Post	Flash
Base Product Number	LX60
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	*LX60-12S,245-0018-3-00,H11402CT,H11402TR,LX6012S,H11402DKR
Standard Package	2,000
Win Source Part Number	1316320-LX60-12S
Ultra Librarian 3D Model	Ultra Librarian LX60-12S CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd LX60-12S is a rectangular connector that comes in a tape and reel package.

Positions: 12
Feature: Board Guide
Connector Type: Receptacle
Contact Feature: Center Strip Contact
Current Rating: 0.5A
HTSUS Code: 8536.69.4040
Standard Package: 2000
Mounting Type: Surface Mount, Right Angle
Packaging: Tape and Reel
