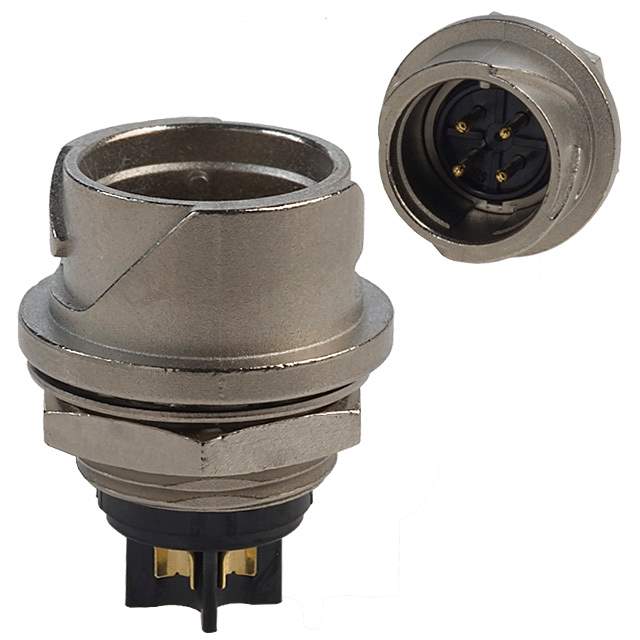

LF10WBR-4P Real Image
Same model may have multiple batches, images only for reference.

LF10WBR-4P

Part No LF10WBR-4P
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 4P GOLD SLDR CUP / 4 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet
LF10WBR-4P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Type Receptacle, Male Pins
Number of Positions 4
Shell Size - Insert 10
Mounting Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 10A
Voltage Rating 125VAC/DC
Temperature Range - Operating -25°C ~ 85°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial, Telecommunications
Base Product Number LF10WBR
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number HR556,136-1005-8-00,LF10WBR4P,*LF10WBR-4P
Standard Package 60
Win Source Part Number 1334454-LF10WBR-4P
Ultra Librarian 3D Model Ultra Librarian LF10WBR-4P CAD Model

Description

The Hirose Electric Co Ltd circular connector assembly is a receptacle with male pins, designed for industrial and telecommunications applications.

  • Connector Type: Receptacle with Male Pins
  • Application: Industrial and Telecommunications
  • Fastening Type: Bayonet Lock
  • Orientation: Keyed
  • Contact Material: Copper Alloy
  • Contact Finish (Mating): Gold
  • Termination: Solder Cup
  • Voltage Rating: 125VAC/DC
  • Ingress Protection: IP67/IP68
  • Shell Material: Zinc Alloy
  • Shell Finish: Nickel
  • Insert Material: Polyphenylene Sulfide (PPS)
  • Mounting Type: Panel Mount
  • Mounting Feature: Bulkhead-Rear Side Nut
  • Shell Size-Insert: 10
  • Contact Finish Thickness-Mating: 8.00µin (0.203µm)
  • Operating Temperature: -25°C to 85°C
  • Current Rating: 10A
  • RoHS Compliant: Yes
  • ECCN: EAR99
