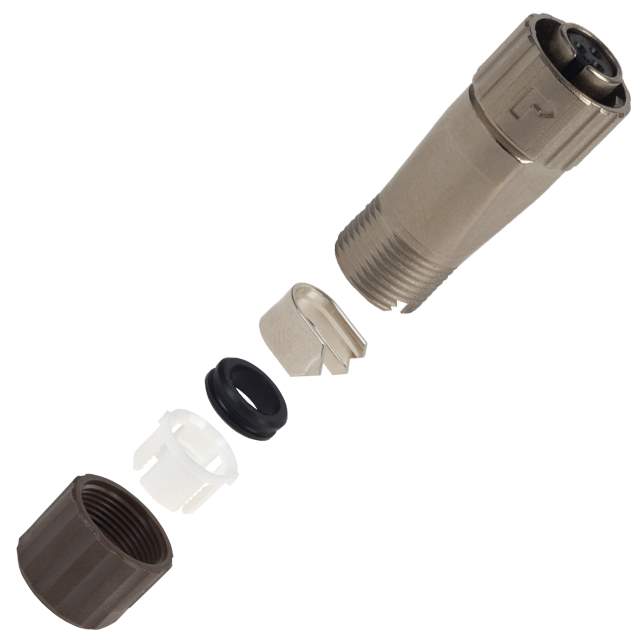

LF07WBP-3S Real Image
Same model may have multiple batches, images only for reference.

LF07WBP-3S

Part No LF07WBP-3S
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN PLUG FMALE 3P GOLD SLDR CUP / 3 Position Circular Connector Plug, Female Sockets Solder Cup
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series LF
Package Bulk
Product Status Obsolete
Connector Type Plug, Female Sockets
Number of Positions 3
Shell Size - Insert 7
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Brown, Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Features Backshell, Clamp, Coupling Nut, Strain Relief
Shielding Shielded
Current Rating (Amps) 5A
Voltage Rating 125VAC, 175VDC
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Zinc Alloy, Nickel
Contact Material Copper Alloy
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial, Telecommunications
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1350325-LF07WBP-3S
Ultra Librarian 3D Model Ultra Librarian LF07WBP-3S CAD Model

Description

The LF07WBP-3S connector assembly, manufactured by Hirose Electric Co Ltd, is a circular connector with 3 positions.

  • Color: Brown and Silver
  • Features: Backshell, Clamp, Coupling Nut, Strain Relief
  • Connector Type: Plug
  • Gender: Female Sockets
  • Termination: Solder Cup
  • Fastening Type: Bayonet Lock
  • Package: Bulk
  • Contact Material: Copper Alloy
  • Voltage Rating: 125VAC, 175VDC
  • Ingress Protection: IP67/IP68
  • Shielded: Yes
  • Material Flammability Rating: UL94 V-0
  • Application: Industrial and Telecommunications
  • Orientation: Keyed
  • Standard Package: 50
  • Shell Size: 7
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Mounting Type: Free Hanging (In-Line)
  • Temperature Range: -25°C to 85°C
  • Shell Material: Zinc Alloy
  • Shell Finish: Nickel
  • Insert Material: Polyphenylene Sulfide (PPS)
  • Status: Obsolete
  • Current Rating: 5A
