Same model may have multiple batches, images only for reference.

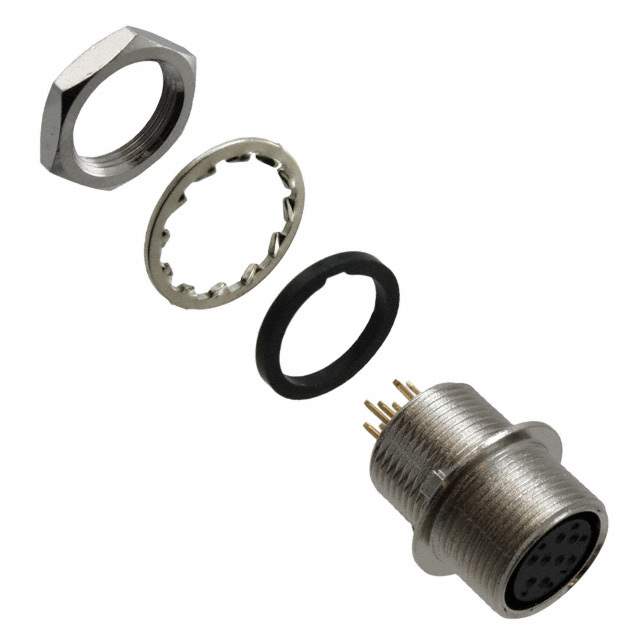

HR25-7TR-8SA(73) Real Image
Same model may have multiple batches, images only for reference.

HR25-7TR-8SA(73)

Part No HR25-7TR-8SA(73)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 8POS GOLD SOLDER / 8 Position Circular Connector Receptacle, Female Sockets Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Type Receptacle, Female Sockets
Number of Positions 8
Shell Size - Insert 7
Mounting Panel Mount, Through Hole
Mounting Feature Bulkhead - Rear Side Nut
Termination Solder
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Material Flammability Rating UL94 V-0
Shielding Shielded
Current Rating (Amps) 1A
Voltage Rating 30VAC, 42VDC
Temperature Range - Operating -25°C ~ 85°C
Contact Material Phosphor Bronze
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial
Base Product Number HR25
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number HR1470,*HR25-7TR-8SA(73),125-0023-0-73,HR257TR8SA73
Standard Package 60
Win Source Part Number 1334424-HR25-7TR-8SA(73)
Ultra Librarian 3D Model Ultra Librarian HR25-7TR-8SA(73) CAD Model

Description

The HR25-7TR-8SA(73) circular connector assembly by Hirose Electric Co Ltd is a receptacle type connector with female sockets.

  • Positions: 8
  • Shielded: true
  • Connector Material: zinc alloy
  • Connector Finish: nickel
  • Contact Material: phosphor bronze
  • Contact Finish: gold
  • Current Rating: 1A
  • Voltage Rating: 30VAC, 42VDC
  • Mounting: panel mount, through hole
  • Mounting Feature: bulkhead - rear side nut
  • Shell Size: 7
  • Insert Material: Polyphenylene Sulfide (PPS)
  • Operating Temperature: -25°C to 85°C
