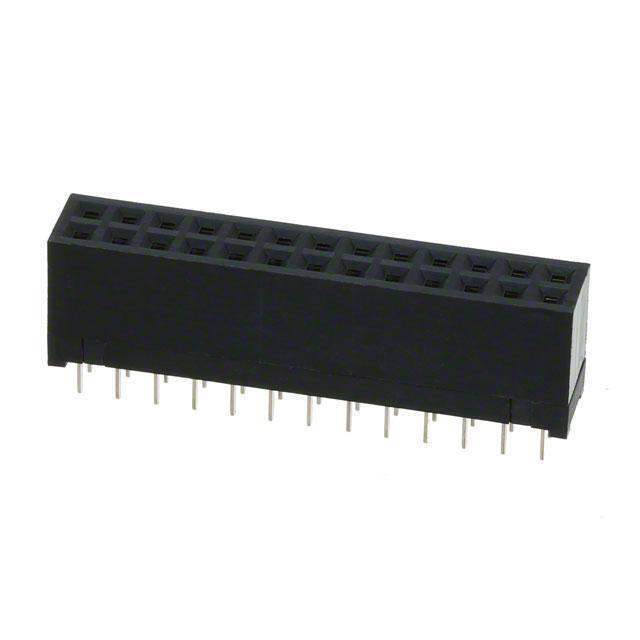

HIF3H-26DA-2.54DSA(71) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

HIF3H-26DA-2.54DSA(71)

Part No HIF3H-26DA-2.54DSA(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 26POS 0.1 GOLD PCB
Datasheet
HIF3H-26DA-2.54DSA(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197283-HIF3H-26DA-2.54DSA(71)
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects- Rectangular Connectors- Headers, Receptacles, Female Sockets
Series HIF3H
Package Tray
Product Status Obsolete
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 26
Pitch - Mating 0.100" (2.54mm)
Row Spacing - Mating 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian HIF3H-26DA-2.54DSA(71) CAD Model

Description

The HIF3H is a female socket connector manufactured by Hirose Electric Co Ltd. It is part of the Connectors, Interconnects category and belongs to the HIF3H series. This connector has 26 positions and is designed as a receptacle. It is packaged in a tray and has a board-to-board style. The pitch for mating is 0.100" (2.54mm) and the row spacing for mating is also 0.100" (2.54mm). The product is classified as obsolete.
