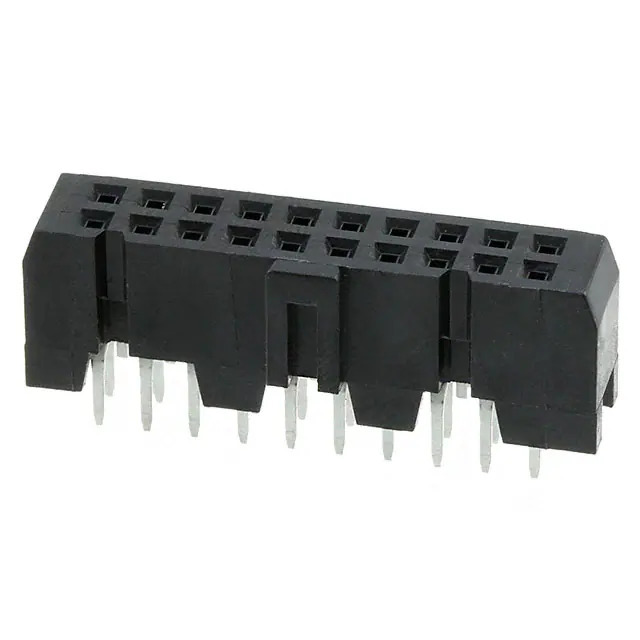

Same model may have multiple batches, images only for reference.

HIF3FB-20DA-2.54DSA(71)

Name: HIF3FB-20DA-2.54DSA(71)
Brand: Hirose Electric Co Ltd
SKU: 1363505
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HIF3FB-20DA-2.54DSA(71)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 20POS 0.1 GOLD PCB / 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	HIF3FB-20DA-2.54DSA(71) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	HIF3FB
Package	Tray
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Insulation Color	Black
Insulation Height	0.374" (9.50mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	12.2mm
Ingress Protection	-
Features	Polarizing Key
Current Rating (Amps)	1A
Voltage Rating	200VAC
Applications	General Purpose
Insulation Material	Polybutylene Terephthalate (PBT)
Contact Shape	Square
Contact Material	Copper Alloy
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	HIF3
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1363505-HIF3FB-20DA-2.54DSA(71)
Ultra Librarian 3D Model	Ultra Librarian HIF3FB-20DA-2.54DSA(71) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd HIF3FB series is a receptacle connector with a polarizing key feature.

Positions: 20
Rows: 2
Mounting Type: Through Hole
Contact Finish: Gold (8.00µin (0.203µm))
Category: Headers, Receptacles, Female Sockets
Connector Type: Rectangular Connectors
Product Status: Active
