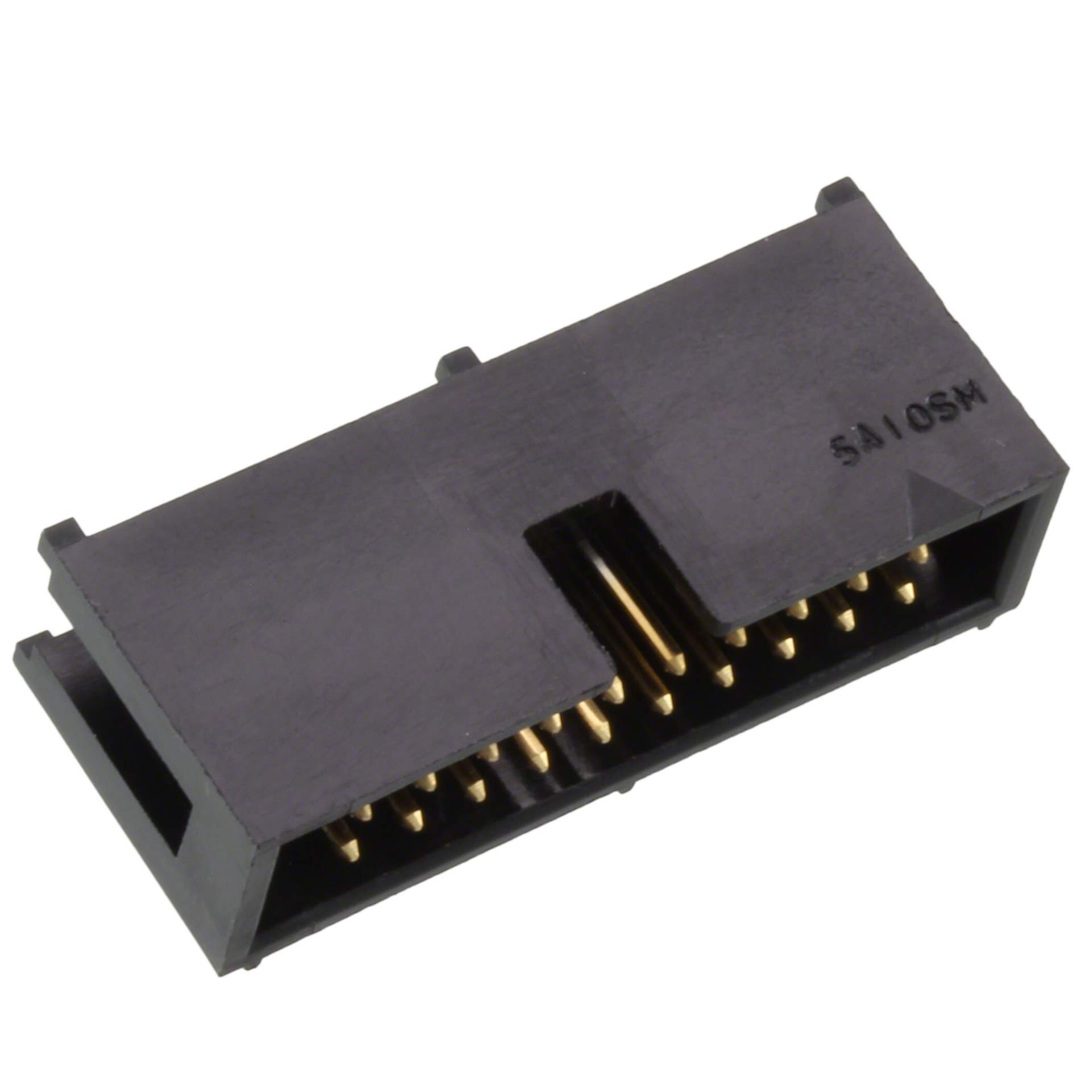

The HIF3F-20PA-2.54DS(71) is a connector header with a keying slot feature.

• Pitch: 0.100" (2.54mm)
• Connection Style: Board to cable/wire
• Positions: 20
• Rows: 2
• Positions Loaded: All
• Contact Material: Brass
• Contact Finish (Mating): Gold
• Contact Finish (Post): Tin
• Contact Finish Thickness (Mating): 8.00µin (0.203µm)
• Contact Finish Thickness (Post): 78.7µin (2.00µm)
• Current Rating: 1A
• Voltage Rating: 200V
• Temperature Range: -55°C to 85°C
• Insulation Material: Polybutylene Terephthalate (PBT)
• Insulation Color: Black
• Mounting: Through Hole, Right Angle
• Shrouding: Shrouded - 4 Wall
• Contact Length (Mating): 0.236" (6.00mm)
• Contact Length (Post): 0.118" (3.00mm)
• Insulation Height: 0.335" (8.51mm)
• Row Spacing (Mating): 0.100" (2.54mm)
• Fastening Type: Latch Holder
• Packaging: Tray
