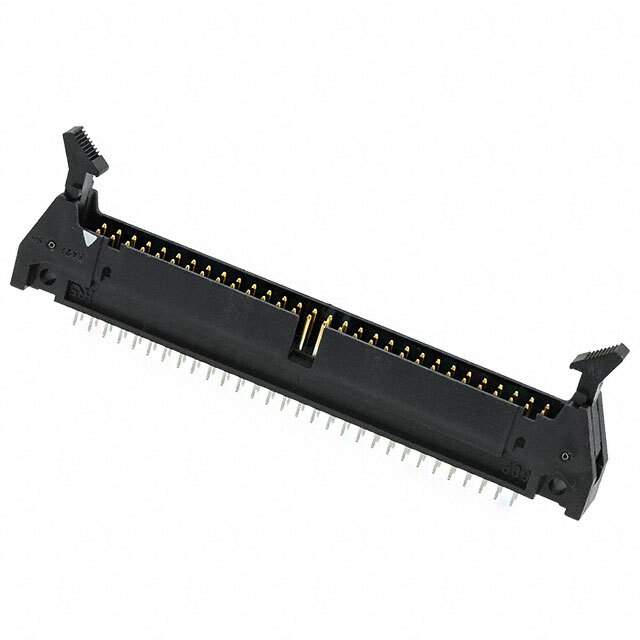

HIF3BB-60PA-2.54DSA(71) Real Image
Same model may have multiple batches, images only for reference.

HIF3BB-60PA-2.54DSA(71)

Part No HIF3BB-60PA-2.54DSA(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 60POS 2.54MM / Connector Header Through Hole 60 position 0.100" (2.54mm)
Datasheet
HIF3BB-60PA-2.54DSA(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series HIF3B
Package Tray
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 60
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.657" (16.70mm)
Insulation Height 0.701" (17.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 200V
Contact Finish Thickness - Post 78.7µin (2.00µm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -HIF3BB-60PA-2.54DSA(71),H123791,HIF3BB-60PA-2.54DSA(71)-ND,610-0142-1-71,*HIF3BB-60PA-2.54DSA(71),*HIF3BB-60PA-2.54DSA(71)-ND
Standard Package 60
Win Source Part Number 1030476-HIF3BB-60PA-2.54DSA(71)
Ultra Librarian 3D Model Ultra Librarian HIF3BB-60PA-2.54DSA(71) CAD Model

Description

The HIF3BB-60PA-2.54DSA(71) is a rectangular connector that is designed for headers and male pins.

  • Positions: 60
  • Keying: features keying slot
  • Connector Type: Header
  • Contact Type: Male pin
  • Termination: Solder
  • Fastening Type: Latch lock/eject hooks
  • Voltage Rating: 200V
  • Mated stacking heights: Yes
  • Mounting Type: Through hole
  • Shrouding: Shrouded - 4 wall
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Insulation Color: Black
  • Operating Temperature Range: -55°C ~ 85°C
  • MSL Level: 1 (Unlimited)
  • Applications: Used in various applications.
  • Manufacturer: Hirose Electric Co Ltd
