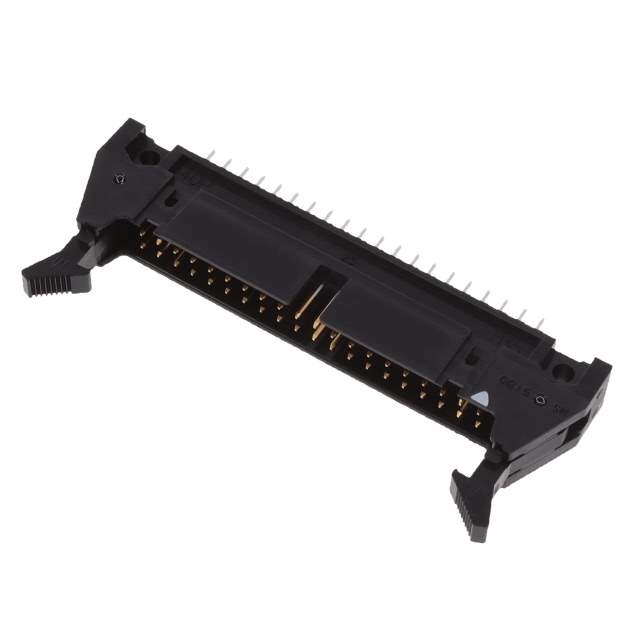

The Hirose Electric Co Ltd 1040134 is a male pin header connector with 40 positions and 2 rows.

• Positions: 40
• Rows: 2
• Pitch-Mating: 0.100" (2.54mm)
• Row Spacing-Mating: 0.100" (2.54mm)
• Contact Finish-Mating: Gold with a thickness of 8.00µin (0.203µm)
• Contact Finish-Post: Tin with a thickness of 78.7µin (2.00µm)
• Voltage Rating: 200V
• Current Rating: 1A
• Temperature Range: -55°C to 85°C
• Insulation Material: Polybutylene Terephthalate (PBT)
• Mounting Type: Through-Hole
• Shrouded: Yes, with 4 walls
• Product Status: Obsolete
• Popularity Rating: Medium
