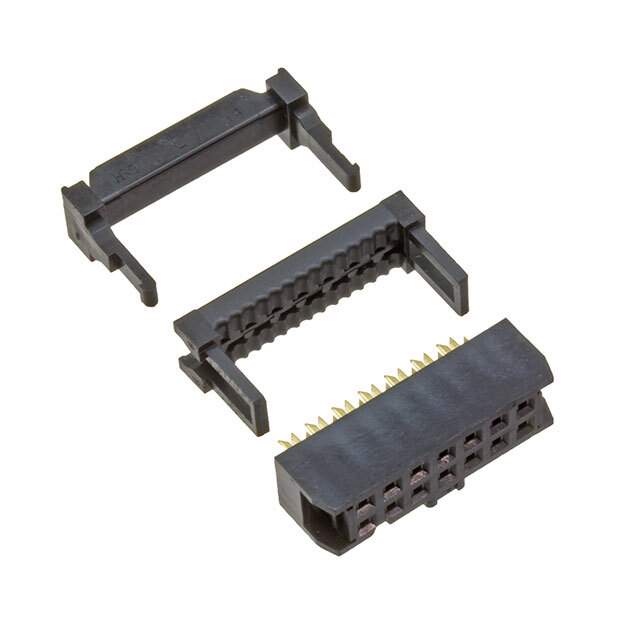

Same model may have multiple batches, images only for reference.

HIF3BA-14D-2.54R

Name: HIF3BA-14D-2.54R
Brand: Hirose Electric Co Ltd
SKU: 1332854
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HIF3BA-14D-2.54R
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN SOCKET 14POS IDC 28AWG GOLD / 14 Position Rectangular Socket Connector IDC Gold 28 AWG
Datasheet	HIF3BA-14D-2.54R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Free Hanging, Panel Mount
Manufacturer	Hirose Electric Co Ltd
Packaging	Tray
Product Status	Obsolete
Connector Type	Socket
Contact Type	Female Socket
Number of Positions	14
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting	Free Hanging (In-Line)
Cable Termination	IDC
Wire Type	Ribbon Cable
Wire Gauge	28 AWG
Features	Feed Through, Polarizing Key, Strain Relief
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Color	Black
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Part Number	610-0022-0-00,HIF3BA-14D-2.54R-ND,H126195
Standard Package	140
Win Source Part Number	1332854-HIF3BA-14D-2.54R
Ultra Librarian 3D Model	Ultra Librarian HIF3BA-14D-2.54R CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd HIF3BA-14D-2.54R is a 14-position, 2-row, female socket connector with a pitch of 0.100" (2.54mm).

Positions: 14
Rows: 2
Contact Type: Female Socket
Pitch: 0.100" (2.54mm)
Features: Feed-Through Design, Polarizing Key, and Strain Relief
Cable Compatibility: 28 AWG Ribbon Cable
Termination: IDC Cable Termination
Contact Finish: Gold with a thickness of 8.00µin (0.203µm)
Color: Black
Packaging: Trays
Mounting: Free-Hanging (In-Line)
RoHS Compliant: Yes
Status: Obsolete
