Same model may have multiple batches, images only for reference.

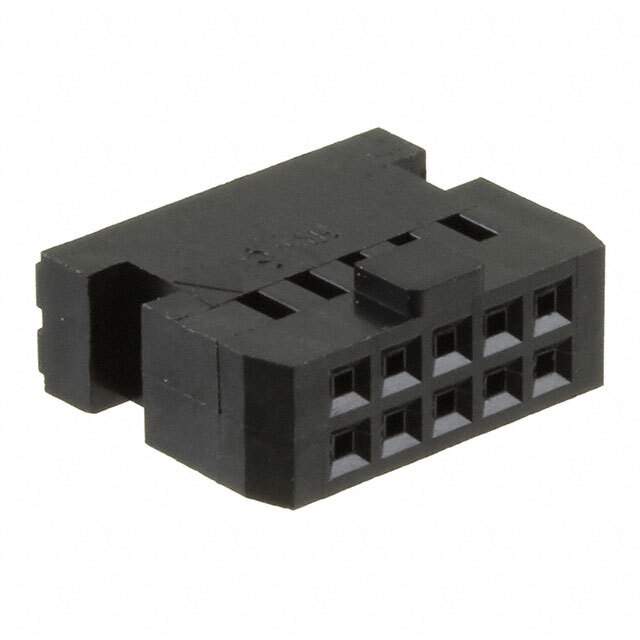

HIF3BA-10D-2.54C Real Image
Same model may have multiple batches, images only for reference.

HIF3BA-10D-2.54C

Part No HIF3BA-10D-2.54C
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT HSG 10POS 2.54MM / 10 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Datasheet
HIF3BA-10D-2.54C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Product Status Obsolete
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 10
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Color Black
Features Polarizing Key
Note Contacts Not Included
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number HIF3BA-10D-2.54C-ND,610-1041-0-00,*HIF3BA-10D-2.54C-ND,H123722,*HIF3BA-10D-2.54C,-HIF3BA-10D-2.54C
Standard Package 50
Win Source Part Number 1333074-HIF3BA-10D-2.54C
Ultra Librarian 3D Model Ultra Librarian HIF3BA-10D-2.54C CAD Model

Description

The Hirose Electric Co Ltd 1333074-HIF3BA-10D-2.54C is a rectangular connector housing with 10 positions.

  • Status: Obsolete
  • Key: Polarizing Key
  • Connector: Receptacle
  • Contacts: Female Socket
  • Mounting: Free Hanging, In-Line
  • RoHS Compliant: Yes
  • ECCN: EAR99
