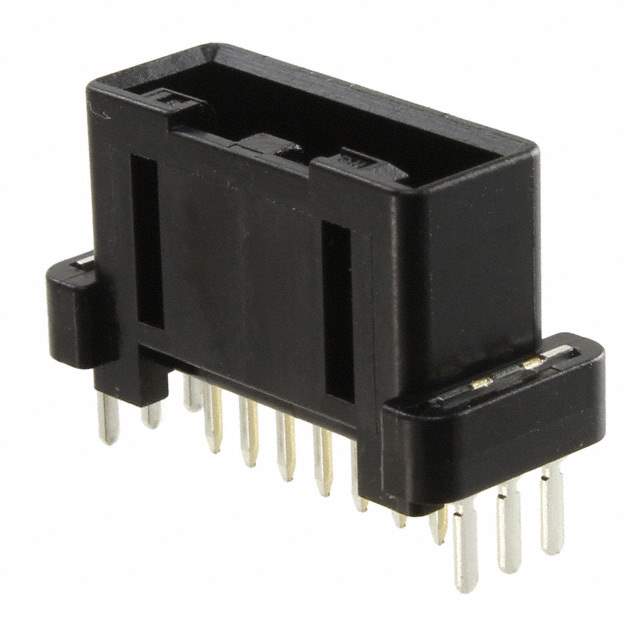

Same model may have multiple batches, images only for reference.

GT8E-7P-DSA

Get a Quote

Part No	GT8E-7P-DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 7POS 2MM / Connector Header Through Hole 7 position 0.079" (2.00mm)
Datasheet	GT8E-7P-DSA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Hirose Electric Co Ltd
Packaging	Tray
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	7
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.476" (12.10mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Board Guide
Insulation Color	Black
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	758-0066-3-00,H122069,GT8E-7P-DSA-ND
Standard Package	100
Win Source Part Number	1334145-GT8E-7P-DSA
Ultra Librarian 3D Model	Ultra Librarian GT8E-7P-DSA CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd GT8E-7P-DSA is a 7-position male pin header connector that belongs to the rectangular connector family.

Application: Board-to-Cable/Wire
Status: Obsolete
Pitch: 2.00mm
Mounting: Through Hole
Contact Material: Brass
Contact Finish: Tin
Feature: Board Guide
Fastening Type: Latch Lock
ROHS Compliant: Yes
