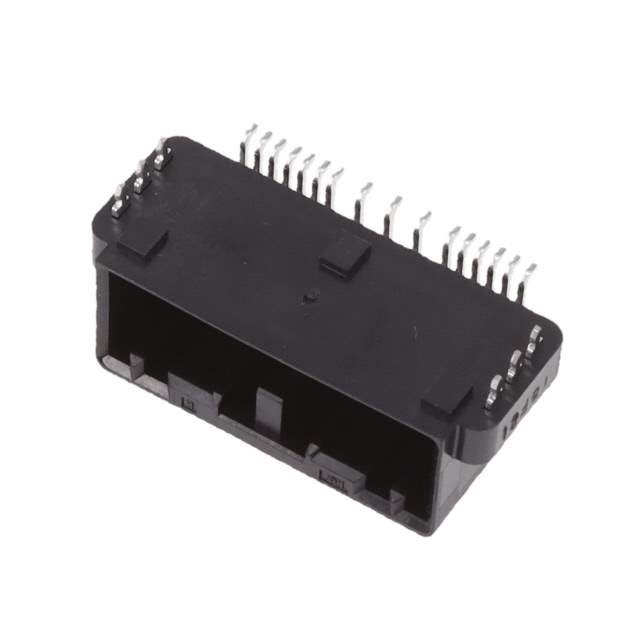

Same model may have multiple batches, images only for reference.

GT8E-16DP-2H

Name: GT8E-16DP-2H
Brand: Hirose Electric Co Ltd
SKU: 1332959
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	GT8E-16DP-2H
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 16POS 2MM / Connector Header Surface Mount, Right Angle 16 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	16
Number of Rows	2
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Insulation Height	0.403" (10.23mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Board Lock
Insulation Color	Black
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	758-1009-5-00,H126182DKR,H126182CT,H126182TR,GT8E-16DP-2H-ND
Standard Package	300
Win Source Part Number	1332959-GT8E-16DP-2H
Ultra Librarian 3D Model	Ultra Librarian GT8E-16DP-2H CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd manufactured GT8E-16DP-2H is a rectangular connector that is used to connect various devices.

Pitch: 2.00mm
Mounting: Surface Mountable
Insulation Color: Black
RoHS Compliant: Yes
Positions Loaded: 16
Style: Board to Cable/Wire
Shrouding: Shrouded-4 Wall
Fastening Type: Latch Holder
Contact Type: Male Pin
Termination: Solder
Series: GT8
Standard Package: 300
