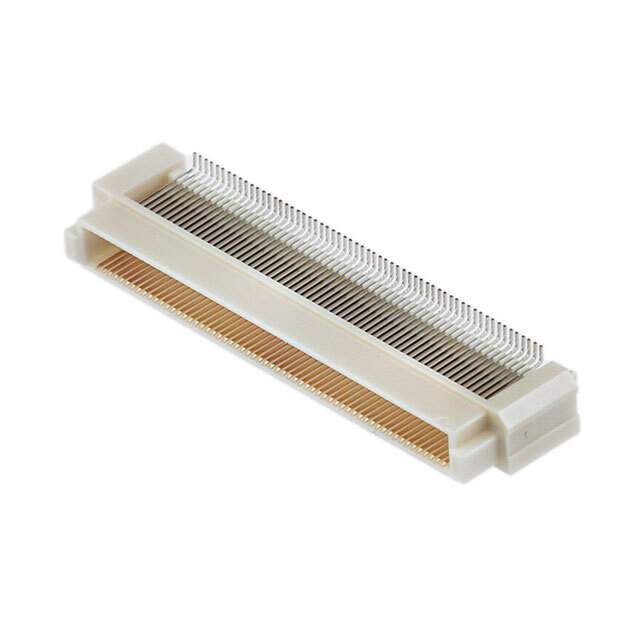

Same model may have multiple batches, images only for reference.

FX8C-120P-SV6(71)

Name: FX8C-120P-SV6(71)
Brand: Hirose Electric Co Ltd
SKU: 1332940
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FX8C-120P-SV6(71)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 120POS SMD GOLD / 120 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer	Hirose Electric Co Ltd
Packaging	Tray
Connector Type	Header, Outer Shroud Contacts
Number of Positions	120
Pitch	0.024" (0.60mm)
Number of Rows	2
Mounting	Surface Mount
Features	Board Guide
Contact Finish	Gold
Mated Stacking Heights	11mm, 16mm
Height Above Board	0.427" (10.85mm)
Base Product Number	FX8
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	578-0606-7-71,FX8C-120P-SV6(71)-ND,H126143
Standard Package	90
Win Source Part Number	1332940-FX8C-120P-SV6(71)
Ultra Librarian 3D Model	Ultra Librarian FX8C-120P-SV6(71) CAD Model

Alternative Products

Description

The FX8C-120P-SV6(71) connector from Hirose Electric Co Ltd is an array, edge type, mezzanine (board to board) connector.

Positions: 120
Rows: 2
Pitch: 0.024" (0.60mm)
Features: Board Guide and Header, Outer Shroud Contacts
Contact Finish: Gold
Contact Finish Thickness: Not specified
Mounting: Surface Mount Technology
Height Above Board: 0.427" (10.85mm)
Packaging: Tray
Standard Package: 90
ECCN: EAR99
HTSUS: 8536.69.4040
Mated Stacking Heights: 11mm and 16mm
Suitable for: Rectangular connectors and interconnects
