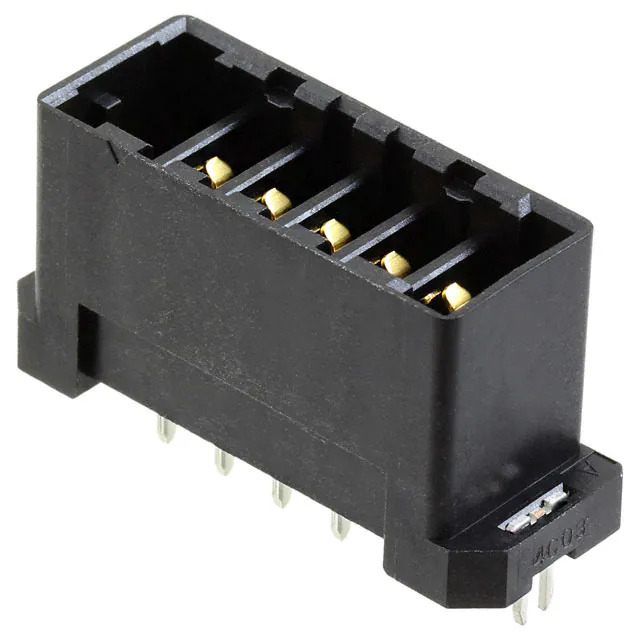

Same model may have multiple batches, images only for reference.

FX30B-5S-3.81DSA

Name: FX30B-5S-3.81DSA
Brand: Hirose Electric Co Ltd
SKU: 1363510
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FX30B-5S-3.81DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 5POS 0.15 GOLD PCB / 5 Position Receptacle Connector 0.150" (3.81mm) Through Hole Gold
Datasheet	FX30B-5S-3.81DSA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	FunctionMax™ FX30B
Package	Tray
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Blade Socket
Style	Board to Board
Number of Positions	5
Number of Positions Loaded	All
Pitch - Mating	0.150" (3.81mm)
Number of Rows	1
Row Spacing - Mating	-
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.90µin (0.099µm)
Insulation Color	Black
Insulation Height	0.630" (16.00mm)
Contact Length - Post	0.130" (3.30mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	20mm, 25mm, 30mm
Ingress Protection	-
Features	Board Guide, Board Lock
Current Rating (Amps)	13A
Voltage Rating	250V
Applications	General Purpose
Insulation Material	Polyamide (PA), Nylon
Contact Shape	Rectangular
Contact Material	Copper Alloy
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	FX30B
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1363510-FX30B-5S-3.81DSA
Ultra Librarian 3D Model	Ultra Librarian FX30B-5S-3.81DSA CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd FunctionMax™ FX30B series is a high-quality rectangular connector suitable for various electronic applications.

Series: FunctionMax™ FX30B
Connector Type: Female Receptacle
Pitch: 0.150" (3.81mm)
Positions: 5
Contact Finish: Gold
Contact Finish Thickness: 3.90µin (0.099µm)
Mounting: Through-Hole
Features: Board Guide, Board Lock
Current Rating: 13A
Voltage Rating: 250V
Application: General Purpose
Status: Active
Manufacturer: Hirose Electric Co Ltd
