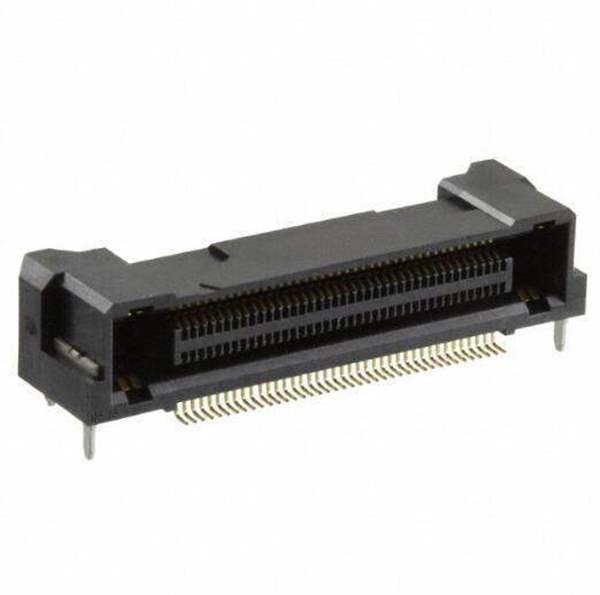

FX23-80S-0.5SHHirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX23-80S-0.5SH

Part No FX23-80S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 80POS R/A SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Packaging Tray
Part Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 84 (80 + 4 Power)
Pitch 0.020" (0.50mm)
Mounting Type Surface Mount, Right Angle
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Height Above Board 0.287" (7.30mm)
Win Source Part Number WS1305484-FX23-80S-0.5SH
Ultra Librarian 3D Model Ultra Librarian FX23-80S-0.5SH CAD Model

Description

84 (80 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount, Right Angle Gold
