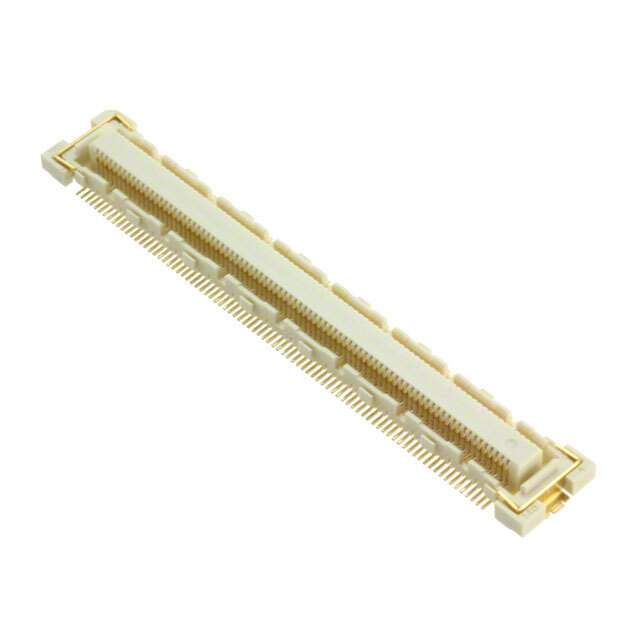

FX10A-168S-SV(85) Real Image
Same model may have multiple batches, images only for reference.

FX10A-168S-SV(85)

Part No FX10A-168S-SV(85)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN RCPT 168POS SMD GOLD / 168 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
FX10A-168S-SV(85) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX10
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Receptacle, Center Strip Contacts
Number of Positions 168
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 4mm, 5mm, 6mm, 7mm, 8mm
Height Above Board 0.126" (3.20mm)
Base Product Number FX10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names H11986CT,H11986DKR,FX10A168SSV85,H11986DKRINACTIVE,570-0244-7-85,*FX10A-168S-SV(85),H11986TR,H11986DKR-ND
Standard Package 250
Win Source Part Number 1192425-FX10A-168S-SV(85)
Ultra Librarian 3D Model Ultra Librarian FX10A-168S-SV(85) CAD Model

Description

The FunctionMax™ FX10 is a series of rectangular connectors designed for board-to-board applications. The FX10A168SSV85 is a receptacle connector with a center strip contact configuration.

  • Positions: 168
  • Pitch: 0.020" (0.50mm)
  • Features: board guides and solder retention
  • Contact Finish: gold with a thickness of 30.0µin (0.76µm)
  • Packaging: tape and reel or cut tape
  • Mated Stacking Heights: 4mm, 5mm, 6mm, 7mm, and 8mm
  • Height Above Board: 0.126" (3.20mm)
  • Mounting: surface-mountable
  • Standard Package: 250
  • REACH: unaffected
  • Manufacturer: Hirose Electric Co Ltd
  • Alternate Names: H11986CT, H11986DKR, FX10A168SSV85, H11986DKRINACTIVE, 570-0244-7-85, *FX10A-168S-SV(85), H11986TR, and H11986DKR-ND
