Same model may have multiple batches, images only for reference.

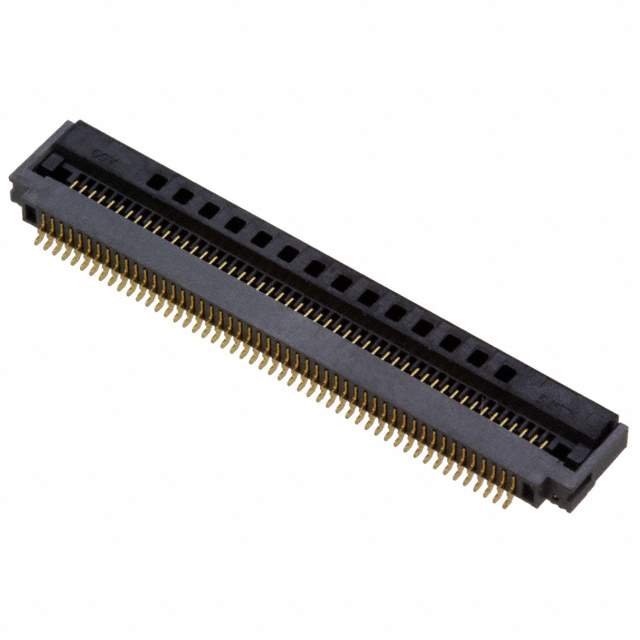

FH52-50S-0.5SH Real Image
Same model may have multiple batches, images only for reference.

FH52-50S-0.5SH

Part No FH52-50S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 50POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Tape and Reel
Flat Flex Type FFC, FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 50
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Dielectric Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.18μin (0.030μm)
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 759917-FH52-50S-0.5SH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FH52-50S-0.5SH CAD Model

Description

The Hirose Electric Co Ltd FH52 series 759917-FH52-50S-0.5SH is a 50-position FFC/FPC connector.

  • Pitch: 0.50mm
  • Mounting: Right Angle Surface Mount
  • Termination: Solder
  • Locking Feature: Flip Lock
  • Voltage Rating: -
  • Current Rating: 0.5A
  • Material: Liquid Crystal Polymer (LCP)
  • Halogen-Free: Yes
  • Flammability Rating: UL94 V-0
  • Color: Gray
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Thickness: 1.18μin (0.030μm)
  • Height Above Board: 2.00mm
  • Flex Type: FFC/FPC
  • Mating Cycle: 20
  • Packaging: Tape and Reel
