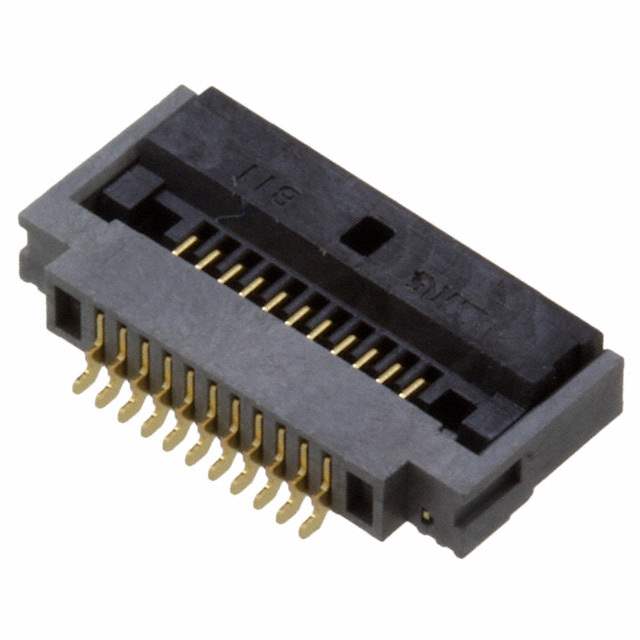

FH52-11S-0.5SH(99) Real Image
Same model may have multiple batches, images only for reference.

FH52-11S-0.5SH(99)

Part No FH52-11S-0.5SH(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 11POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 11
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Contact Finish Thickness 1.25μin (0.03μm)
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Win Source Part Number 001188-FH52-11S-0.5SH(99)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian FH52-11S-0.5SH(99) CAD Model

Description

The Hirose Electric Co Ltd 001188-FH52-11S-0.5SH(99) is an 11-position, 0.020-inch pitch, bottom contact FFC/FPC connector with a flip lock. It has a cable end type of tabbed and is made of liquid crystal polymer material. This connector is rated for use in temperatures ranging from -40 to 105 degrees Celsius and has a mating cycle of 20. The supply and demand status of this connector is limited, and it comes in a package of 500 pieces.
