Same model may have multiple batches, images only for reference.

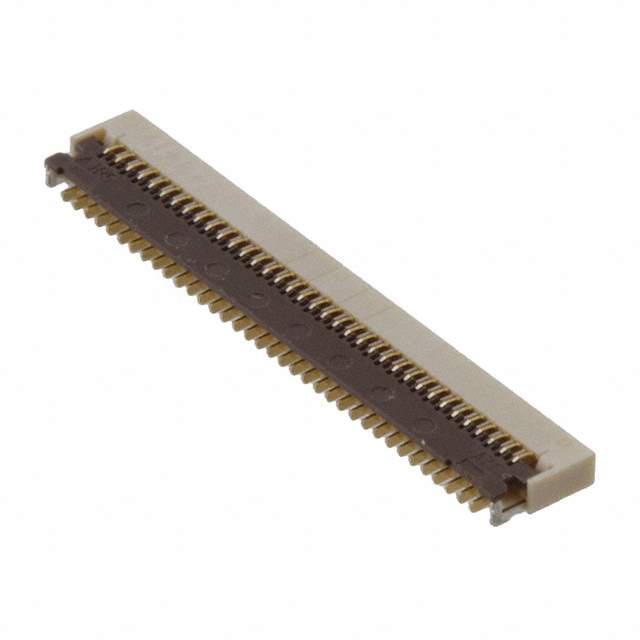

FH43B-71S-0.2SHW(99) Real Image
Same model may have multiple batches, images only for reference.

FH43B-71S-0.2SHW(99)

Part No FH43B-71S-0.2SHW(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 71POS 0.2MM R/A / 71 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH43B
Package Tape & Reel
Product Status Last Time Buy
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 71
Pitch 0.008" (0.20mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA) , Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Housing Color Beige
Actuator Color Black
Mating Cycles 10
Base Product Number FH43B
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1350007-FH43B-71S-0.2SHW(99)
Ultra Librarian 3D Model Ultra Librarian FH43B-71S-0.2SHW(99) CAD Model

Description

The Hirose Electric Co Ltd FH43B-71S-0.2SHW(99) is a 71-position FFC/FPC connector assembly that features a flip lock locking feature and a zero insertion force (ZIF) design.

  • Connector/ Contact Type: bottom contacts
  • Flat Flex Type: FPC
  • Pitch: 0.008" (0.20mm)
  • Termination: solder
  • Contact Material: phosphor bronze
  • Contact Finish: gold
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Housing Material: liquid crystal polymer (LCP)
  • Actuator Material: polyamide (PA) and nylon
  • Housing Color: beige
  • Actuator Color: black
  • Height Above Board: 0.035" (0.88mm)
  • Cable End Type: tabbed
  • Temperature Range for Operation: -55°C to 85°C
