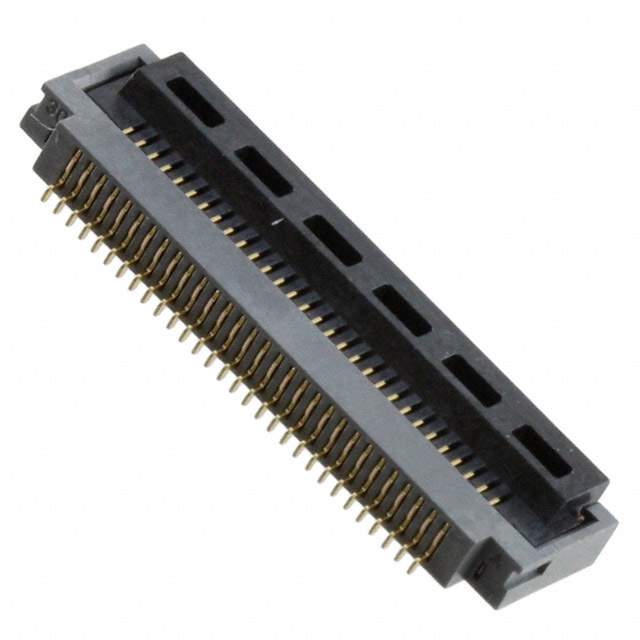

FH41-30S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH41-30S-0.5SH(05)

Part No FH41-30S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 30POS 0.50MM R/A
Datasheet
FH41-30S-0.5SH(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FFC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 30
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.098" (2.50mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tabbed
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Contact Finish Thickness 1.25μin (0.03μm)
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Win Source Part Number 1038824-FH41-30S-0.5SH(05)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian FH41-30S-0.5SH(05) CAD Model

Description

The Hirose Electric Co Ltd FH41-30S-0.5SH(05) is a surface mount connector that is designed for interconnecting electronic components.

  • Positions: 30
  • Pitch: 0.020" (0.50mm)
  • Termination: Solder
  • Contact Finish: Gold, with a thickness of 1.25μin (0.03μm)
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Height Above Board: 0.098" (2.50mm)
  • Suitable for: Flat flex type FFC cables with a thickness of 0.30mm
  • Cable Retention: Flip lock and backlock
  • Housing Material: Liquid crystal polymer (LCP), halogen free
  • Actuator Material: LCP, halogen free
  • Popularity: Medium
  • Supply and Demand: Balance
  • Quantity: 2,500 pcs
