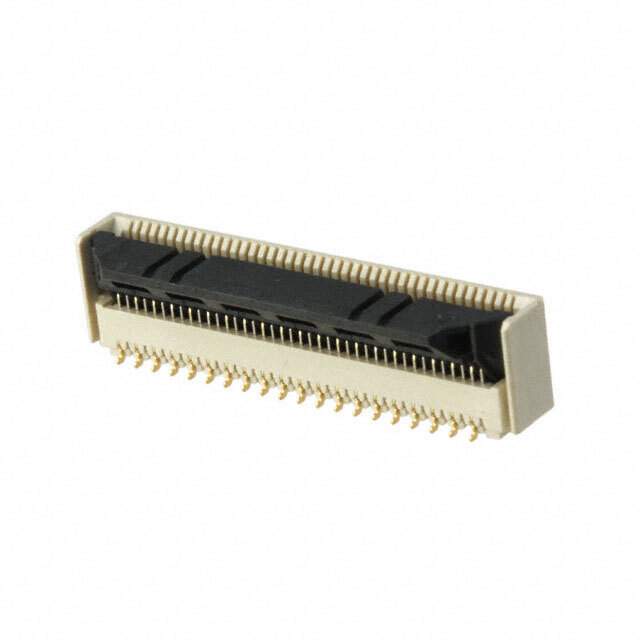

The FH40-40S-0.5SV connector, manufactured by Hirose Electric Co Ltd, is a vertical contact type connector with 40 positions.

• Positions: 40
• Pitch: 0.020" (0.50mm)
• Operating Temperature: -40°C to 105°C
• Termination: Solder
• Contact Finish: Gold, 2μin (0.05μm)
• Contact Material: Phosphor Bronze
• Voltage Rating: 50V
• Current Rating: 0.5A
• Height Above Board: 0.228" (5.80mm)
• FFC/FPC Compatibility: FPC
• Locking Feature: Flip Lock
• Cable End Type: Tabbed
• Housing and Actuator Material: Liquid Crystal Polymer (LCP)
• Material Flammability Rating: UL94 V-0
• Housing Color: Beige
• Mounting Type: SMD
• Mating Cycles: 20
• Family Name: FH40
• Supply and Demand Status: Limited
• Package: 1k pcs
