Same model may have multiple batches, images only for reference.

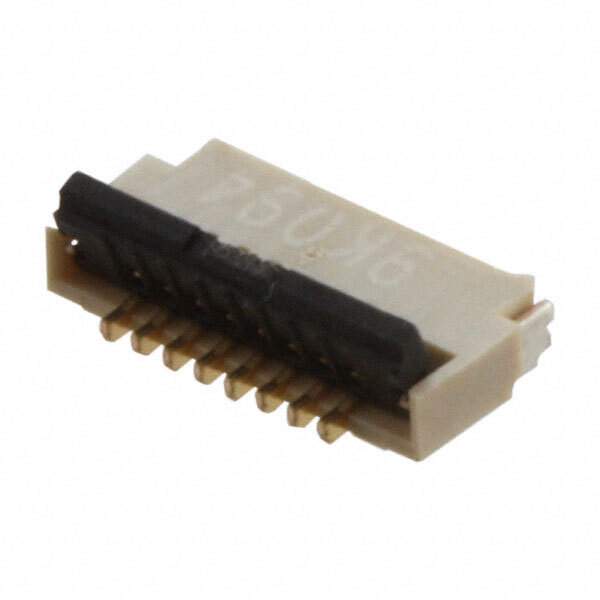

FH34S-8S-0.5SH(50) Real Image
Same model may have multiple batches, images only for reference.

FH34S-8S-0.5SH(50)

Part No FH34S-8S-0.5SH(50)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 8POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Part Status Obsolete (End Of Life)
Flat Flex Type FFC, FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 8
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802581-FH34S-8S-0.5SH(50)
Ultra Librarian 3D Model Ultra Librarian FH34S-8S-0.5SH(50) CAD Model

Description

The FH34S-8S-0.5SH(50) is a surface mount connector manufactured by Hirose Electric Co Ltd.

  • Positions: 8
  • Pitch: 0.020" (0.50mm)
  • Popularity: High
  • Packaging: Reels
  • Insertion Force: Zero Insertion Force (ZIF)
  • Locking: Rotary Lock, Backlock
  • Cable Type: Flat Flex Cable
  • Current Rating: 0.5A
