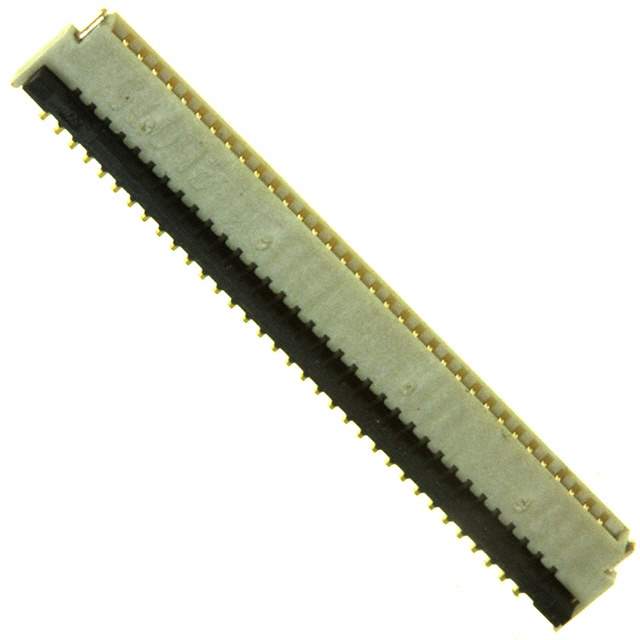

Same model may have multiple batches, images only for reference.

FH34S-34S-0.5SH(50)

Name: FH34S-34S-0.5SH(50)
Brand: Hirose Electric Co Ltd
SKU: 1019874
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH34S-34S-0.5SH(50)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC TOP 34POS 0.50MM R/A / 34 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet	FH34S-34S-0.5SH(50) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Hirose Electric Co Ltd
Series	FH34S
Package	Tape & Reel
Product Status	Obsolete
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	34
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	Beige
Actuator Color	Black
Mating Cycles	20
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	HFT134TR,FH34S34S05SH50,*FH34S-34S-0.5SH(50),HFT134CT,HFT134DKR
Standard Package	5,000
Win Source Part Number	1019874-FH34S-34S-0.5SH(50)
Ultra Librarian 3D Model	Ultra Librarian FH34S-34S-0.5SH(50) CAD Model

Alternative Products

Description

The FH34S series connector from Hirose Electric Co Ltd is a FFC/FPC (Flat Flexible) connector with a pitch of 0.020" (0.50mm) and 34 positions.

Type: FFC/FPC (Flat Flexible) connector
Pitch: 0.020" (0.50mm)
Positions: 34
Design: Zero insertion force (ZIF)
Termination: Solder
Contact Material: Phosphor bronze
Contact Finish: Gold
Housing Material: Liquid crystal polymer (LCP)
Actuator Material: Polyamide (PA) and nylon
Lock: Rotary lock and backlock
Cable End Type: Tapered
Voltage Rating: 50V
Current Rating: 0.5A
Mounting: Surface mounted
Mounting Type: Right angle
Temperature Range: -55°C to 85°C
Mating Cycle: 20
Color: Beige
Package: Tape & reel
Standard Package: 5,000
