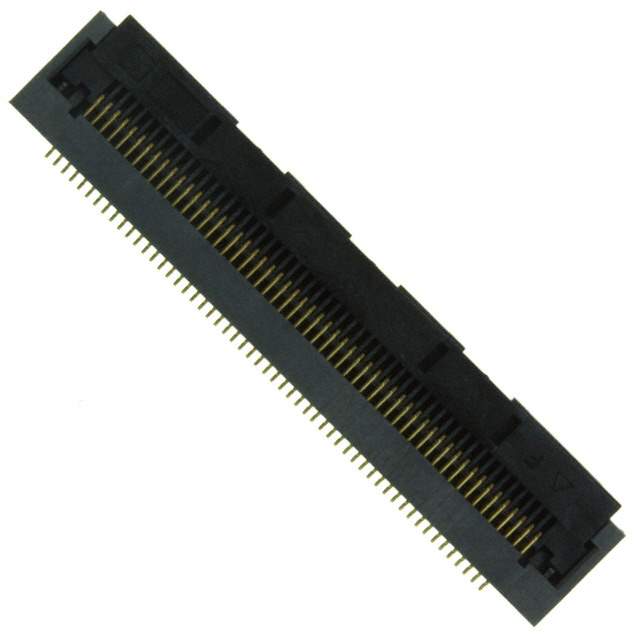

FH28D-55S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH28D-55S-0.5SH(05)

Part No FH28D-55S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 55POS 0.50MM R/A
Datasheet
FH28D-55S-0.5SH(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 55 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH28
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount, Right Angle
Family Name FH28
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871884-FH28D-55S-0.5SH(05)
Ultra Librarian 3D Model Ultra Librarian FH28D-55S-0.5SH(05) CAD Model

Description

The FH28D-55S-0.5SH(05) is a 55 position FFC, FPC Connector Contacts electronic component manufactured by Hirose Electric Co Ltd.

  • Positions: 55
  • Series: FH28
  • Family Name: FH28
  • Operating Temperature Range: -40°C ~ 105°C
  • Mounting Style: Surface Mount, Right Angle
  • Category: Connectors
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Quantity per Package: 2000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 25 weeks
