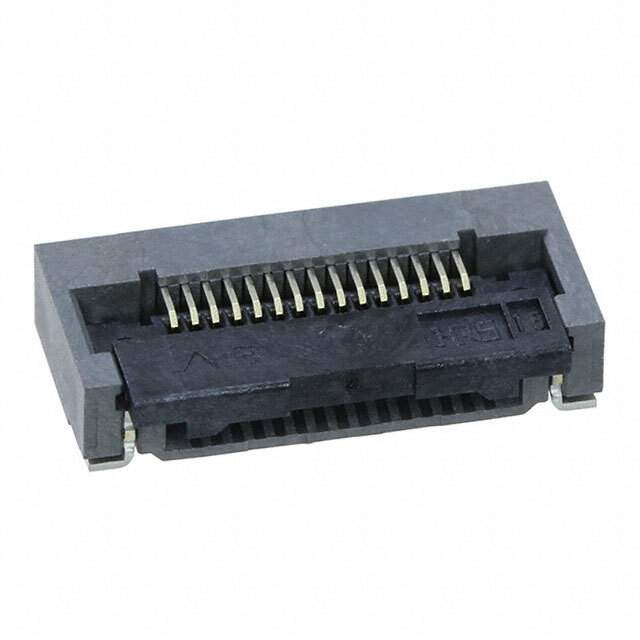

FH28-15S-0.5SH(10) Real Image
Same model may have multiple batches, images only for reference.

FH28-15S-0.5SH(10)

Part No FH28-15S-0.5SH(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 15POS 0.50MM R/A / Conn FFC/FPC Connector SKT 15 POS 0.5mm Solder RA SMD Automotive T/R
Datasheet
FH28-15S-0.5SH(10) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series FH28
Packaging Reel package
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 15
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.100" (2.54mm)
Locking Feature Rotary Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Win Source Part Number 774567-FH28-15S-0.5SH(10)
Popularity Medium
Supply and Demand Status Balance
Family Name FH28
Introduction Date September 15, 2010
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FH28-15S-0.5SH(10) CAD Model

Description

The Hirose Electric Co Ltd FH28 series connector is a 15 position surface mount component with a pitch of 0.020 inches.

  • Series: FH28
  • Positions: 15
  • Pitch: 0.020 inches
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Package: Reel
  • Locking Feature: Rotary Lock
  • Actuator Color: Black
  • Estimated EOL Date: 2027
