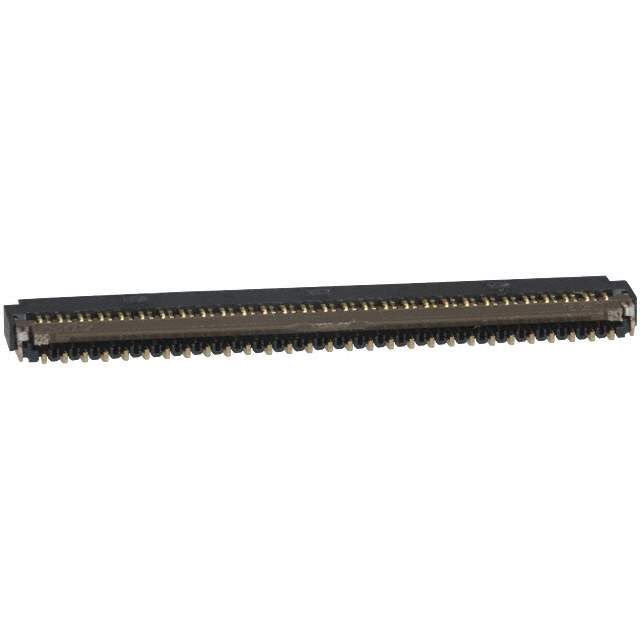

FH26W-57S-0.3SHW(15) Real Image
Same model may have multiple batches, images only for reference.

FH26W-57S-0.3SHW(15)

Part No FH26W-57S-0.3SHW(15)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 57POS 0.30MM R/A
Datasheet
FH26W-57S-0.3SHW(15) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Obsolete(EOL)
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 57
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 HB
Current Rating 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Win Source Part Number 1038761-FH26W-57S-0.3SHW(15)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FH26W-57S-0.3SHW(15) CAD Model

Description

The Hirose Electric Co Ltd FH26W-57S-0.3SHW(15) is a surface mount, right angle connector with bottom contacts that has 57 positions and a pitch of 0.012" (0.30mm).

  • Positions: 57
  • Pitch: 0.012" (0.30mm)
  • Zero Insertion Force (ZIF): Yes
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Height above Board: 0.039" (1.00mm)
  • Flat Flex Type: FPC
  • FFC, FCB Thickness: 0.20mm
  • Locking Feature: Flip Lock
  • Housing Material: Liquid crystal polymer (LCP)
  • Actuator Material: Polyamide (PA), nylon
  • Material Flammability Rating: UL94 HB
  • Housing Color: Black
  • Status: EOL
