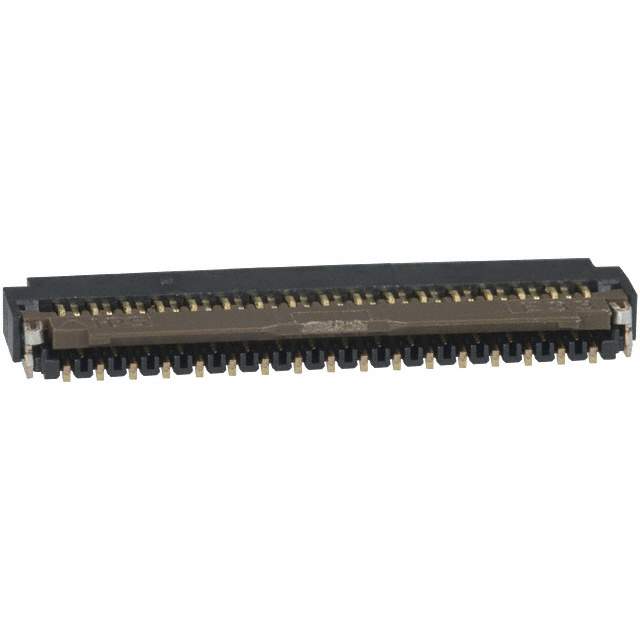

FH26W-33S-0.3SHW(60) Real Image
Same model may have multiple batches, images only for reference.

FH26W-33S-0.3SHW(60)

Part No FH26W-33S-0.3SHW(60)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FPC/FFC 33POS .3MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 33 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH26
Package Reel - TR
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name FH26
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number H125800CT, FH26W-33S-0.3SHW(60)-ND, 580-2409-3-60, H125800TR, H125800DKR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871875-FH26W-33S-0.3SHW(60)
Ultra Librarian 3D Model Ultra Librarian FH26W-33S-0.3SHW(60) CAD Model

Description

The Hirose Electric Co Ltd FH26W-33S-0.3SHW(60) is a 33 position FPC connector with contacts on the bottom and a surface mount on the right angle.

  • Positions: 33
  • Mounting: Bottom, Surface Mount, Right Angle
  • Series: FH26
  • Operating Temperature Range: -55°C to 85°C
  • Package: Reel - TR
  • RoHS Compliant: Yes
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 25 weeks
  • ECCN: EAR99
  • HTSUS: 8536.69.4051
