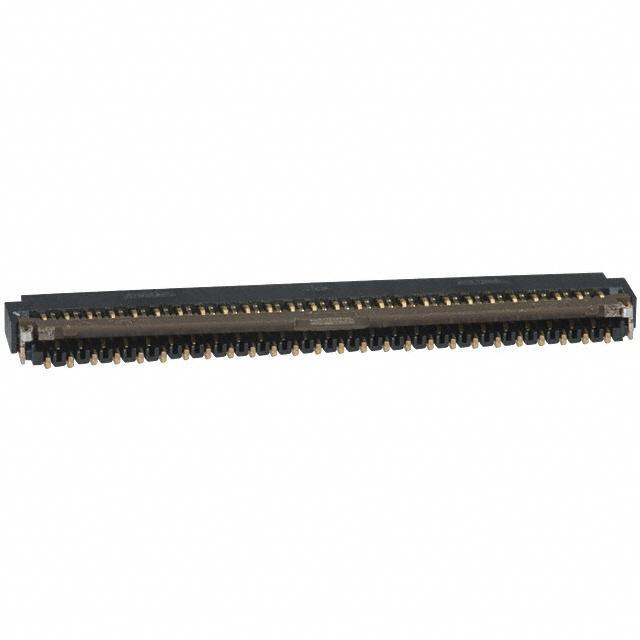

FH26-51S-0.3SHW(05) Hirose Electric Co Ltd FH26-51S-0.3SHW(05) Real Image FH26-51S-0.3SHW(05) real image 2
Same model may have multiple batches, images only for reference.
FH26-51S-0.3SHW(05) Hirose Electric Co Ltd FH26-51S-0.3SHW(05) Real Image FH26-51S-0.3SHW(05) real image 2
FH26-51S-0.3SHW(05) Hirose Electric Co Ltd FH26-51S-0.3SHW(05) Real Image FH26-51S-0.3SHW(05) real image 2
Same model may have multiple batches, images only for reference.

FH26-51S-0.3SHW(05)

Part No FH26-51S-0.3SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 51POS 0.30MM R/A
Datasheet
FH26-51S-0.3SHW(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 51
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Win Source Part Number 1038748-FH26-51S-0.3SHW(05)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FH26-51S-0.3SHW(05) CAD Model

Description

The FH26-51S-0.3SHW(05) electronic component is a surface mount, right angle connector/contact type that is commonly used in various applications.

  • Manufacturer: Hirose Electric Co Ltd
  • Mounting: Surface mount
  • Orientation: Right angle
  • Type: Connector/contact
  • Feature: Zero insertion force (ZIF)
  • Pitch: 0.012" (0.30mm)
  • Positions: 51
  • Height Above Board: 0.039" (1.00mm)
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Mating Cycles: Maximum of 10
  • Housing Material: Liquid crystal polymer (LCP)
  • Actuator Material: Polyamide (PA) nylon
  • Housing Color: Black
  • Actuator Color: Brown
  • Packaging: Reel packaging with a quantity of 5k pcs.
