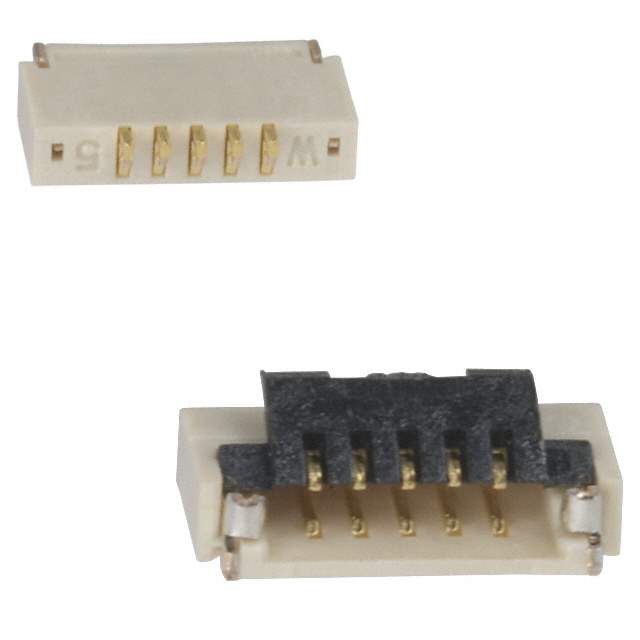

The Hirose Electric Co Ltd FH19SC-5S-0.5SH(05) is an electronic component with low popularity manufactured by Hirose Electric Co Ltd.

• Product: FH19SC-5S-0.5SH(05)
• Manufacturer: Hirose Electric Co Ltd
• Win Source Part Number: 1059113-FH19SC-5S-0.5SH(05)
• Series: FH19SC
• Number of Positions: 5
• Pitch: 0.020" (0.50mm)
• Features: Solder retention, zero insertion force (ZIF)
• Termination: Solder
• Contact Finish: Gold
• Package: Tape and reel
• Contact Material: Phosphor bronze
• Voltage Rating: 50V
• Height Above Board: 0.037" (0.95mm)
• Flat Flex Type: FFC, FPC
• Contacts: Bottom
• FFC, FCB Thickness: 0.30mm
• Locking Feature: Flip lock
• Cable End Type: Tapered
• Housing Material: Liquid crystal polymer (LCP)
• Actuator Material: Liquid crystal polymer (LCP), polyphenylene sulfide (PPS)
• Material Flammability Rating: UL94 V-0
• Housing Color: Beige
• Standard Package: 5,000
• Mating Cycles: 20
• Mounting: Surface and Right Angle
• Temperature Range: -55°C ~ 85°C
• Actuator Color: Black
• MSL Level: 1 (unlimited)
• Current Rating: 0.5A
• REACH Status: REACH unaffected
• HTSUS: 8536.69.4051
• Other Names: HFN505DKR, *FH19SC-5S-0.5SH(05), FH19SC5S05SH05, HFN505TR, HFN505CT
• Product Status: Obsolete
