Same model may have multiple batches, images only for reference.

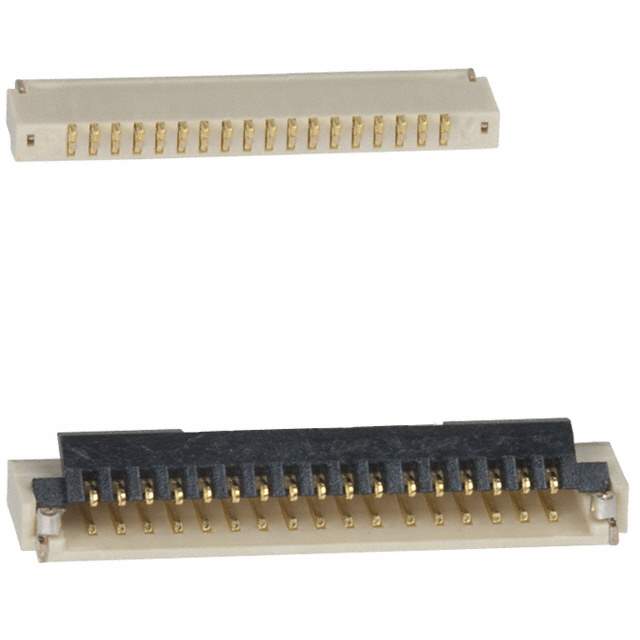

FH19SC-17S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH19SC-17S-0.5SH(05)

Part No FH19SC-17S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 17POS 0.50MM R/A
Datasheet
FH19SC-17S-0.5SH(05) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 17 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH19SC
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number HFN517DKR, HFN517CT, *FH19SC-17S-0.5SH(05), FH19SC17S05SH05, HFN517TR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871825-FH19SC-17S-0.5SH(05)
Ultra Librarian 3D Model Ultra Librarian FH19SC-17S-0.5SH(05) CAD Model

Description

The Hirose Electric Co Ltd FH19SC-17S-0.5SH(05) is a 17 position FFC, FPC connector contact that is used in various applications.

  • Positions: 17
  • Connector Type: FFC, FPC
  • Contacts: Bottom
  • Pitch: 0.020" (0.50mm)
  • Mounting: Surface Mount, Right Angle
  • Series: FH19SC
  • Win Source Part Number: 871825-FH19SC-17S-0.5SH(05)
  • Package: Reel-TR
  • Mounting Style: Surface Mount, Right Angle
  • Part Status: Obsolete
  • Category: Connectors
  • Quantity per Package: 5000
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4051
  • Other Part Numbers: HFN517DKR, HFN517CT, *FH19SC-17S-0.5SH(05), FH19SC17S05SH05, HFN517TR
