Same model may have multiple batches, images only for reference.

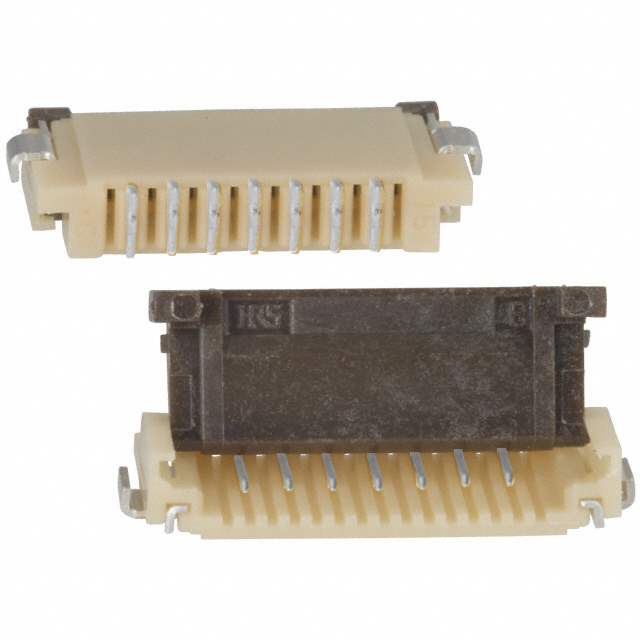

FH12-7S-1SH Real Image
Same model may have multiple batches, images only for reference.

FH12-7S-1SH

Part No FH12-7S-1SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 7POS 1.00MM R/A
Datasheet
FH12-7S-1SH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 7
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Win Source Part Number 30530-FH12-7S-1SH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian FH12-7S-1SH CAD Model

Description

The Hirose Electric Co Ltd 30530-FH12-7S-1SH is a surface mount, right angle connector with a flip lock and 7 positions. It features solder retention and zero insertion force (ZIF) for easy installation.

  • Compatible with: FFC, FPC flat flex type (0.30mm thickness)
  • Housing Material: Polyamide (PA), Nylon
  • Actuator Material: Polyphenylene Sulfide (PPS)
  • Housing Color: Beige
  • Actuator Color: Brown
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Applications: Board to Cable/Wire
  • Temperature Range: -40°C to 85°C
