Same model may have multiple batches, images only for reference.

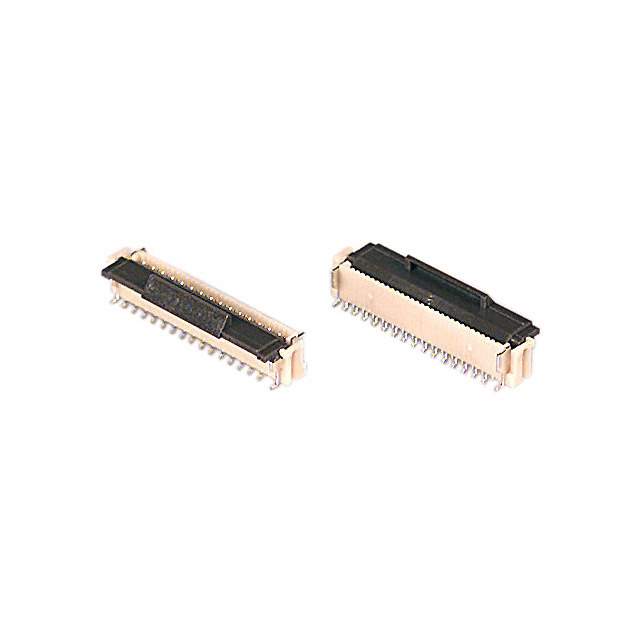

FH12-30S-0.5SV Real Image
Same model may have multiple batches, images only for reference.

FH12-30S-0.5SV

Part No FH12-30S-0.5SV
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 30POS 0.50MM SMD / 0.5mm and 1mm Pitch Connectors For FPC/FFC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Part Status Obsolete (End Of Life)
Flat Flex Type FFC, FPC
Mounting Style SMD
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 30
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.142" (3.60mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin-Lead
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807449-FH12-30S-0.5SV
Ultra Librarian 3D Model Ultra Librarian FH12-30S-0.5SV CAD Model

Description

The Hirose Electric FH12-30S-0.5SV is a 30-position SMD connector.

  • Insertion Force: Zero Insertion Force (ZIF)
  • Retention: Solder
  • Pitch: 0.020" (0.50mm)
  • Voltage Rating: 50V
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin-Lead
  • Height Above Board: 0.142" (3.60mm)
  • Cable Type: Flat Flex (FFC, FPC)
  • Housing Material: Polyamide (PA), Nylon
  • Actuator Material: Polyphenylene Sulfide (PPS)
  • Locking Feature: Flip Lock
  • Cable End Type: Straight
  • Operating Temperature: -40°C to 85°C
  • Mating Cycle: 20
