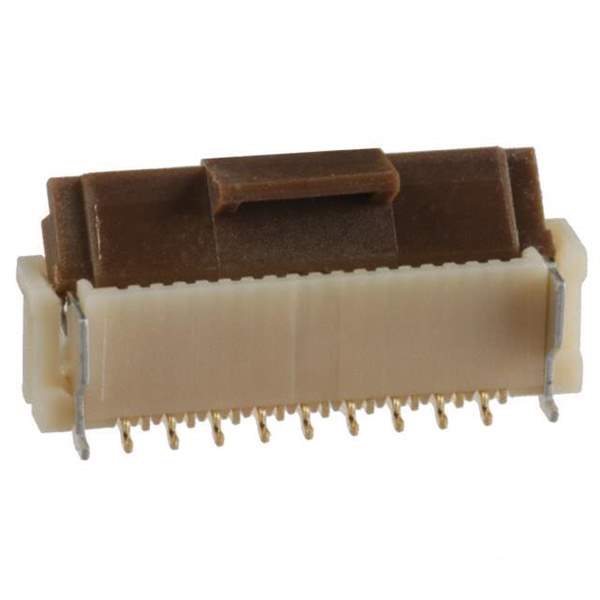

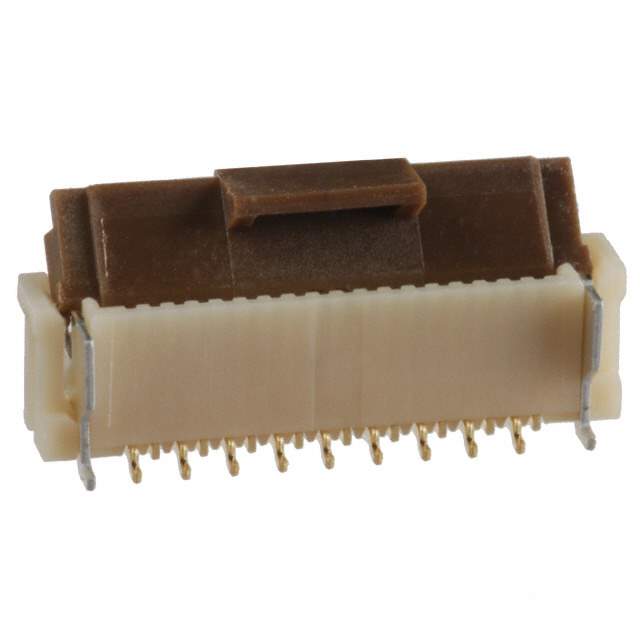

The Hirose Electric Co Ltd FH12-18S-0.5SV(55) is a connector that is commonly used in FFC, FPC (Flat Flexible) Connectors.

• Series: FH12
• Number of Positions: 18
• Pitch: 0.020" (0.50mm)
• Features: solder retention and zero insertion force (ZIF)
• Termination: solder
• Contact Finish: gold
• Contact Finish Thickness: -
• Package: tape & reel
• Contact Material: phosphor bronze
• Voltage Rating: 50V
• Height Above Board: 0.142" (3.60mm)
• Flat Flex Type: FFC, FPC
• Locking Feature: flip lock
• Cable End Type: straight
• Housing Material: polyamide (PA), nylon
• Actuator Material: polyphenylene sulfide (PPS)
• Material Flammability Rating: UL94 V-0
• Housing Color: beige
• Standard Package: 1,000
• Mounting: SMD (SMT)
• Mating Cycle: 20
• Operating Temperature Range: -40°C ~ 85°C
