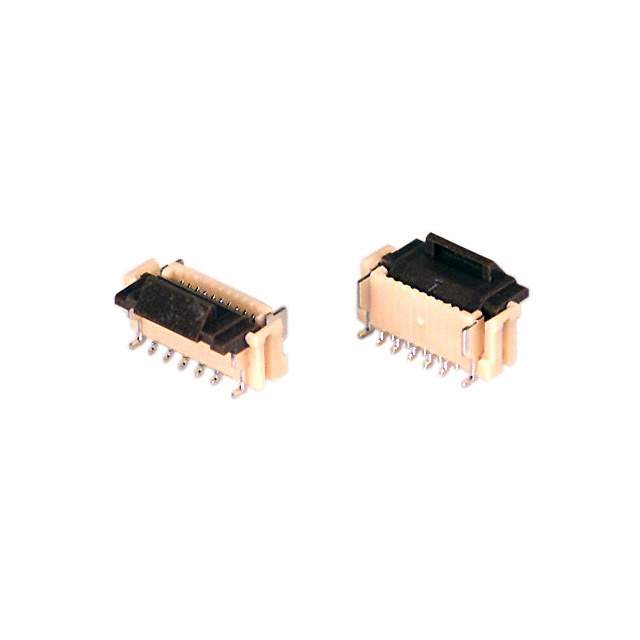

The FH12-10S-0.5SV is a Flat Flexible Cable (FFC) connector manufactured by Hirose Electric Co Ltd. It's part of the FH12 series, designed for connecting FFC/FPC (Flexible Printed Circuit) cables in a compact and reliable manner.

Applications:

• LCD panels: Connecting LCD panels to driver boards in laptops, monitors, and TVs.
• Digital cameras: Interconnecting image sensors to processing boards.
• Printers: Connecting print heads to control boards.
• Scanners: Connecting scanning elements to processing boards.
• Automotive navigation systems: Connecting display screens and touch panels to the main unit.

Features:

• 0.5mm Pitch: Enables high-density connection, accommodating a large number of conductors in a small space.
• 10-Position Connector: Provides connections for 10 individual conductors within the FFC/FPC cable.
• Surface Mount Technology (SMT): Designed for automated assembly processes, reducing manufacturing costs.
• Flip-Lock Actuator: Provides a secure and reliable connection, preventing accidental disconnections.
• RoHS Compliant: Meets environmental regulations, minimizing the use of hazardous substances.

Benefits:

• Space Saving: The fine pitch allows for high-density connections in a small area, crucial for compact devices.
• Reliable Connection: The flip-lock actuator ensures a stable and dependable electrical connection.
• Cost-Effective Assembly: SMT compatibility streamlines the manufacturing process, reducing labor costs and improving production efficiency.
• Environmental Compliance: RoHS compliance ensures that the product meets environmental standards.
• Versatile Application: Suitable for a wide range of electronic devices that utilize FFC/FPC cables.

Additional Details:

The FH12 series connectors are typically made from high-performance plastics and copper alloy contacts with tin or gold plating. The plating material affects the conductivity and corrosion resistance of the connector. The 'SV' likely denotes the connector being SMT, vertical mount. The connector is designed for reflow soldering processes commonly used in SMT assembly.
