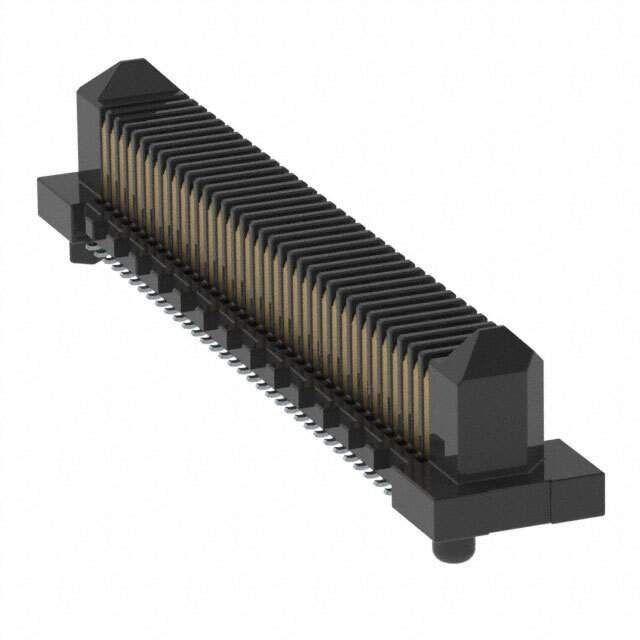

ER8-70P-0.8SV-2H Real Image
Same model may have multiple batches, images only for reference.

ER8-70P-0.8SV-2H

Part No ER8-70P-0.8SV-2H
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 70POS SMD GOLD / 70 Position Connector Header, Center Strip Contacts Surface Mount Gold
Datasheet
ER8-70P-0.8SV-2H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Connector Type Header, Center Strip Contacts
Number of Positions 70
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 7mm, 9mm
Height Above Board 0.234" (5.95mm)
Base Product Number ER8-70P
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H125532TR,625-0021-0-00,H125532CT,H125532DKR
Standard Package 350
Win Source Part Number 1332448-ER8-70P-0.8SV-2H
Ultra Librarian 3D Model Ultra Librarian ER8-70P-0.8SV-2H CAD Model

Description

The ER8-70P-0.8SV-2H is a board-to-board connector from Hirose Electric Co Ltd.

  • Manufacturer: Hirose Electric Co Ltd
  • Type: Board-to-Board Connector
  • Pitch: 0.8 mm
  • Positions: 70
  • Mounting: Surface Mount
  • Mated Stacking Height: 7 mm and 9 mm
  • Applications: Telecommunications, Data Processing, and Control Systems
  • RoHS Compliant: Yes
