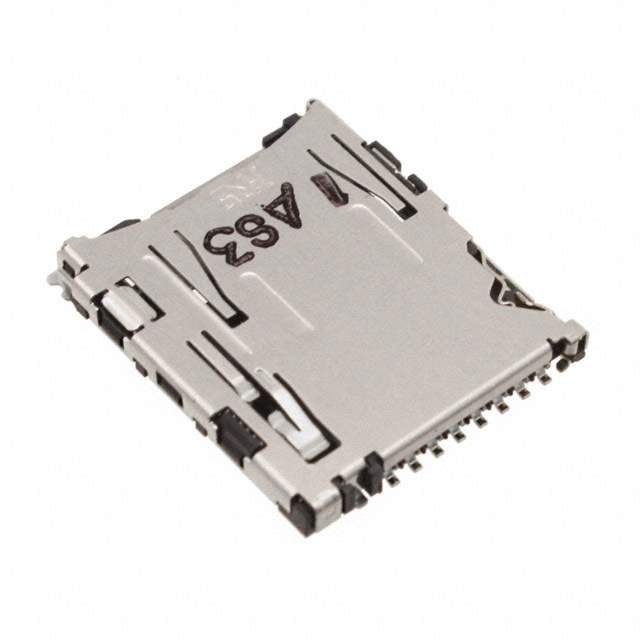

DM3AT-SF-PEJM5(40) Real Image
Same model may have multiple batches, images only for reference.

DM3AT-SF-PEJM5(40)

Part No DM3AT-SF-PEJM5(40)
Manufacturer Hirose Electric Co Ltd
Catalog Memory Connectors - PC Card Sockets
Datasheet
DM3AT-SF-PEJM5(40) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - PC Card Sockets
Mfr Hirose Electric Co Ltd
Series DM3
Package Tape & Reel (TR)
Card Type Secure Digital - microSD™
Number of Positions 10 (8 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Type Surface Mount, Right Angle
Features Switch
Height Above Board 0.066" (1.68mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Base Product Number DM3AT
Other Names 609-0031-0-40
Standard Package 400
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294068-DM3AT-SF-PEJM5(40)
Ultra Librarian 3D Model Ultra Librarian DM3AT-SF-PEJM5(40) CAD Model

Description

The DM3 series of connectors from Hirose Electric Co Ltd is designed for use in memory connectors with PC card sockets.

  • Positions: 10 (8 + 2)
  • Feature: Switch
  • Contact Finish: Gold
  • Package: Tape & Reel (TR)
  • Height Above Board: 0.066" (1.68mm)
  • Standard Package: 400
  • Card Type: Secure Digital - microSD™
  • Insertion and Removal Method: Push in, push out
  • Mounting Feature: Normal, Standard - Top
  • Mounting Type: Surface Mount, Right Angle
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
