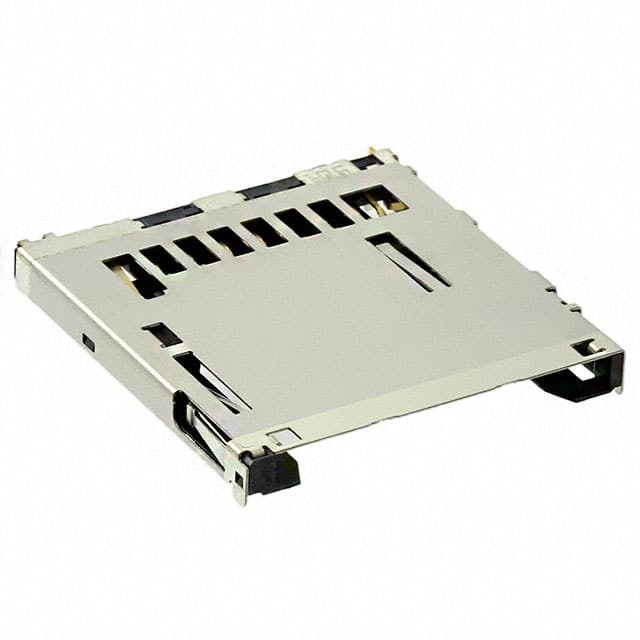

Same model may have multiple batches, images only for reference.
DM1B-DSF-PEJ(82)
Same model may have multiple batches, images only for reference.

DM1B-DSF-PEJ(82)

Part No DM1B-DSF-PEJ(82)
Manufacturer Hirose Electric Co Ltd
Catalog Memory Connectors - PC Card Sockets
Description CONN MEM SECURE DIGITAL REV SMD
Datasheet
DM1B-DSF-PEJ(82) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr Hirose Electric Co Ltd
Series DM1
Package Tape & Reel
Product Status Obsolete
Card Type Secure Digital - SD
Number of Positions 12 (9 + 3)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Type Surface Mount, Right Angle
Features Reverse Card Entry, Switch
Height Above Board 0.114" (2.90mm)
Mounting Feature Reverse - Bottom
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Base Product Number DM1B
Standard Package 450 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.8585
Win Source Part Number 846293-DM1B-DSF-PEJ(82)
Ultra Librarian 3D Model Ultra Librarian DM1B-DSF-PEJ(82) CAD Model

Description

The 846293-DM1B-DSF-PEJ(82) is a PC Card Socket connector manufactured by Hirose Electric Co Ltd.

  • Manufacturer: Hirose Electric Co Ltd
  • Category: Connectors, Interconnects
  • Series: DM1
  • Positions: 12 (9 Main, 3 Switch)
  • Card Entry: Reverse
  • Card Type: Secure Digital (SD)
  • Contact/Ejector Finish: Gold Plated
  • Contact/Ejector Finish Thickness: 8.00µin (0.203µm)
  • Packaging: Tape and Reel
  • Standard Package: 450 pieces
  • Height Above Board: 0.114" (2.90mm)
  • Mounting Style: Surface Mount
  • Mounting Orientation: Right Angle
  • MSL: 1 (Unlimited)
  • HTSUS Code: 8536.90.8585
