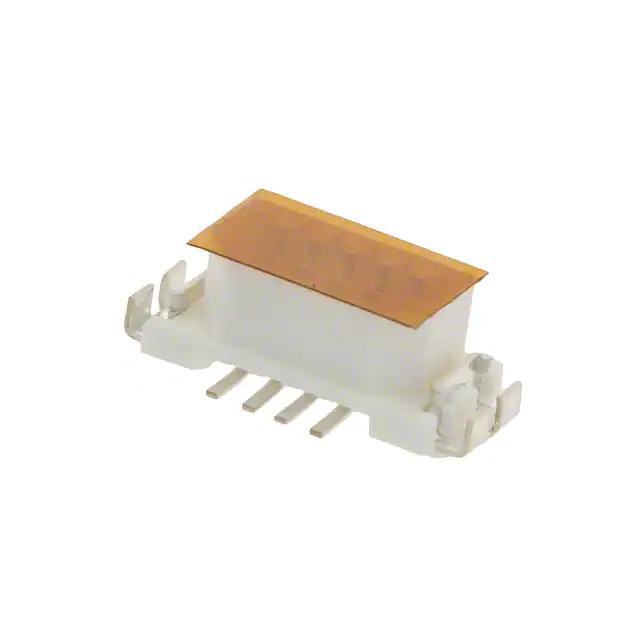

Same model may have multiple batches, images only for reference.

DF9-9P-1V(32)

Name: DF9-9P-1V(32)
Brand: Hirose Electric Co Ltd
SKU: 1364585
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF9-9P-1V(32)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 9POS SMD TIN / 9 Position Connector Header, Center Strip Contacts Surface Mount Tin
Datasheet	DF9-9P-1V(32) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	DF9
Package	Tape & Reel
Product Status	Active
Connector Type	Header, Center Strip Contacts
Number of Positions	9
Pitch	0.039" (1.00mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Solder Retention
Contact Finish	Tin
Contact Finish Thickness	39.4µin (1.00µm)
Mated Stacking Heights	4.3mm
Height Above Board	0.130" (3.30mm)
Base Product Number	DF9-9
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364585-DF9-9P-1V(32)
Ultra Librarian 3D Model	Ultra Librarian DF9-9P-1V(32) CAD Model

Alternative Products

Description

The DF9-9P-1V(32) is a rectangular connector array from Hirose Electric Co Ltd.

Series: DF9
Mounting Type: Surface Mount
Connector Type: Header
Contacts: Center Strip
Contact Finish: Tin
Number of Positions: 9
Number of Rows: 2
Mated Stacking Height: 4.3mm
Pitch: 0.039" (1.00mm)
Height Above Board: 0.130" (3.30mm)
MSL: 1 (Unlimited)
HTSUS Code: 8536.69.4040
ECCN: EAR99
