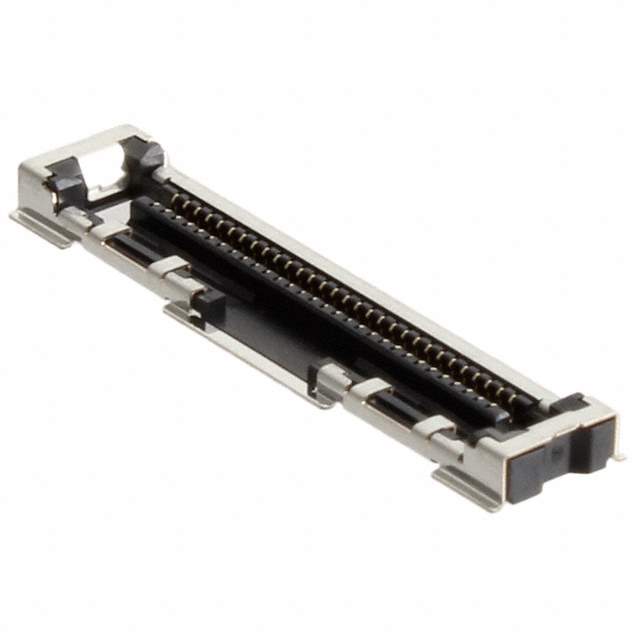

Same model may have multiple batches, images only for reference.

DF80-30S-0.5V(51)

Name: DF80-30S-0.5V(51)
Brand: Hirose Electric Co Ltd
SKU: 804327
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF80-30S-0.5V(51)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 30POS 0.02 GOLD SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Hirose Electric Co Ltd
Packaging	Reel
Connector Type	Receptacle
Contact Type	Center Strip Contact
Style	Board to Cable/Wire
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.020" (0.50mm)
Number of Rows	1
Mounting Style	SMD
Termination	Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.97μin (0.050μm)
Insulation Color	Black
Insulation Height	0.065" (1.65mm)
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Solder Retention
Current Rating (Amps)	0.5A
Voltage Rating	50V
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	1.97μin (0.050μm)
Manufacturer Pack Quantity	5,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	804327-DF80-30S-0.5V(51)
Ultra Librarian 3D Model	Ultra Librarian DF80-30S-0.5V(51) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 804327-DF80-30S-0.5V(51) is a surface mount connector designed for board to cable/wire applications.

Connector Type: Receptacle
Contact Type: Center Strip
Termination: Solder
Positions: 30
Pitch: 0.020" (0.50mm)
Fastening Type: Friction Lock
Contact Finish: Gold
Contact Finish Thickness: 1.97μin (0.050μm) (Mating & Post)
Voltage Rating: 50V
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP), Halogen-Free
Insulation Color: Black
Insulation Height: 0.065" (1.65mm)
Packaging: Reel
Manufacturer Pack Quantity: 5,000
MSL Level: 1 (unlimited)
Current Rating: 0.5A
