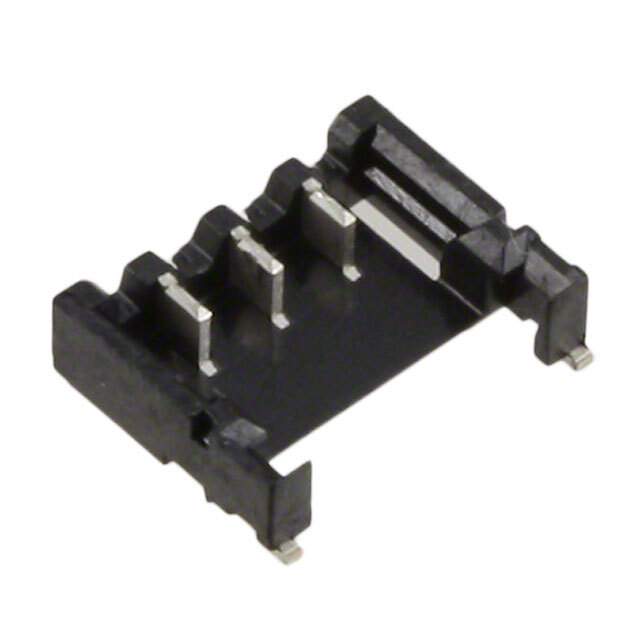

Same model may have multiple batches, images only for reference.

DF57-3P-1.2V(21)

Name: DF57-3P-1.2V(21)
Brand: Hirose Electric Co Ltd
SKU: 447972
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF57-3P-1.2V(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER 1.2MM 3POS SMD
Datasheet	DF57-3P-1.2V(21) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Obsolete(EOL)
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.047" (1.20mm)
Style	Board to Cable/Wire
Shrouding	Unshrouded
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Swing Lock
Insulation Height	0.055" (1.40mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Solder Retention
Temperature Range - Operating	-35°C to 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Win Source Part Number	1033039-DF57-3P-1.2V(21)
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian DF57-3P-1.2V(21) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 1033039-DF57-3P-1.2V(21) is a header connector that is soldered to the board.

Mounting: Solder to Board
Fastening Type: Swing Lock
Application: Board to Cable/Wire
Pitch-Mating: 0.047" (1.20mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Positions: 3
Shrouding: Unshrouded
Popularity: Medium
Fake Risk: 59%
Supply/Demand Status: Balanced
