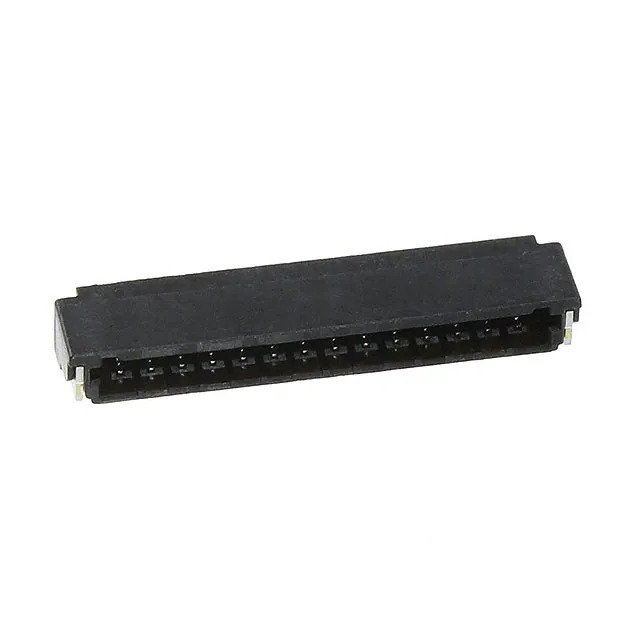

Same model may have multiple batches, images only for reference.

DF52-14S-0.8H(21)

Name: DF52-14S-0.8H(21)
Brand: Hirose Electric Co Ltd
SKU: 1365521
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF52-14S-0.8H(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN SOCKET 14P 0.031 TIN SMD RA / 14 Position Socket Connector 0.031" (0.80mm) Surface Mount, Right Angle Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	DF52
Package	Tape & Reel
Product Status	Active
Connector Type	Socket
Contact Type	Non-Gendered
Style	Board to Cable/Wire
Number of Positions	14
Number of Positions Loaded	All
Pitch - Mating	0.031" (0.80mm)
Number of Rows	1
Row Spacing - Mating	-
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Insulation Color	Black
Insulation Height	0.069" (1.75mm)
Contact Length - Post	-
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	-
Ingress Protection	-
Features	Glow Wire Compliant, Solder Retention
Current Rating (Amps)	1.5A
Voltage Rating	100V
Applications	-
Insulation Material	Polyamide (PA), Nylon, Halogen Free
Contact Shape	-
Contact Material	Copper Alloy
Contact Finish Thickness - Post	-
Base Product Number	DF52
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1365521-DF52-14S-0.8H(21)
Ultra Librarian 3D Model	Ultra Librarian DF52-14S-0.8H(21) CAD Model

Alternative Products

Description

The DF52 series rectangular connector header from Hirose Electric Co Ltd is a versatile and reliable component for board to cable/wire connections.

Pitch: 0.031" (0.80mm)
Mounting Type: Surface Mount, Right Angle
Current Rating: 1.5A
Material: Copper Alloy
Termination Style: Solder
Application: Board to Cable/Wire Connections (e.g., Telecommunications, Consumer Electronics, Industrial Equipment)
