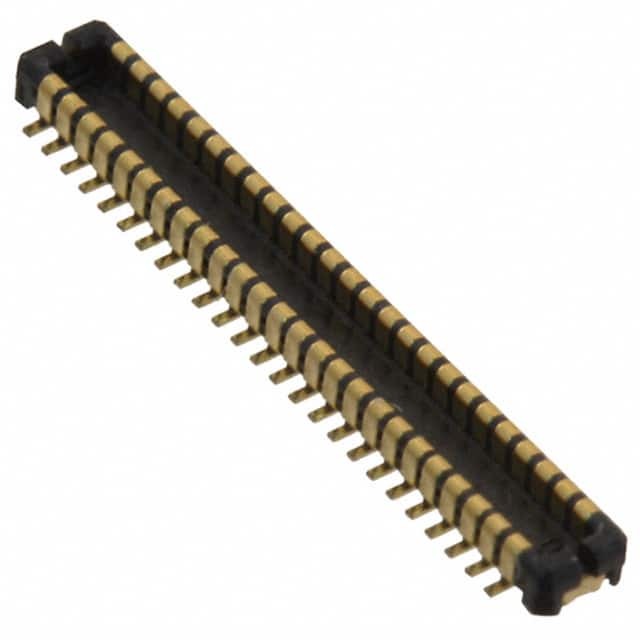

DF37NC-50DS-0.4V(51)

Part No DF37NC-50DS-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 50POS SMD GOLD / 50 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF37
Package Tape & Reel
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.98mm
Height Above Board 0.038" (0.97mm)
Base Product Number DF37N
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 868541-DF37NC-50DS-0.4V(51)
Ultra Librarian 3D Model Ultra Librarian DF37NC-50DS-0.4V(51) CAD Model

Description

DF37NC-50DS-0.4V(51) from Hirose Electric Co Ltd is a fine-pitch board-to-board rectangular connector designed for compact electronic assemblies where low profile and dense interconnect spacing are critical. As part of the DF37 series, this 50-position, 2-row surface-mount receptacle is well suited for portable devices, industrial control boards, embedded modules, medical electronics, and other space-constrained systems that require reliable mezzanine connection between PCBs. Engineers typically select parts in this category for signal routing in tightly stacked designs, especially where controlled board height and consistent mating performance matter. The supplied product data lists the part as Active, which is a positive indicator for ongoing design support, although lifecycle should still be confirmed directly with Hirose for long-term programs. RoHS compliance information is not explicitly provided in the supplied specifications, so compliance status should be treated as information not available pending manufacturer documentation or the latest official datasheet.
