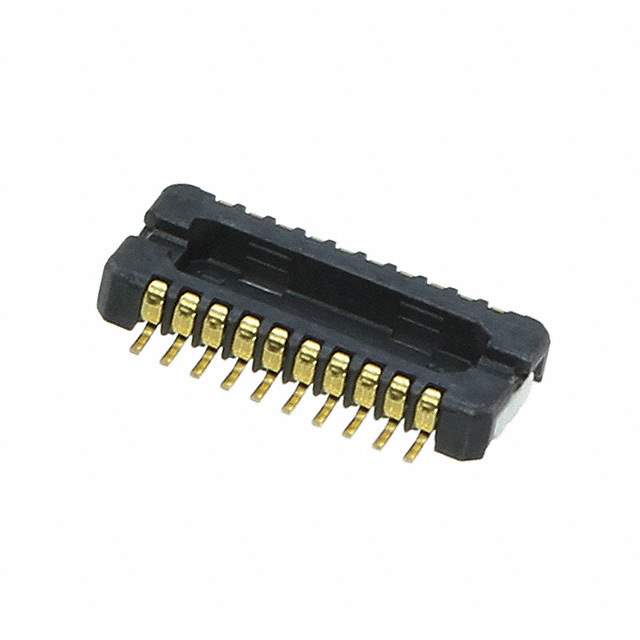

DF30FB-20DP-0.4V(81) Real Image
Same model may have multiple batches, images only for reference.

DF30FB-20DP-0.4V(81)

Part No DF30FB-20DP-0.4V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Center Strip Contacts Surface Mount Gold
Datasheet
DF30FB-20DP-0.4V(81) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF30
Package Tape & Reel (TR)
Product Status Obsolete
Connector Type Header, Center Strip Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.9mm
Height Above Board 0.035" (0.88mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 684-1129-5-81,Q6001159
Standard Package 5,000
Win Source Part Number 1055352-DF30FB-20DP-0.4V(81)
Ultra Librarian 3D Model Ultra Librarian DF30FB-20DP-0.4V(81) CAD Model

Description

The Hirose Electric Co Ltd DF30FB-20DP-0.4V(81) is a rectangular connector with a header, center strip contacts.

  • Positions: 20
  • Rows: 2
  • Pitch: 0.016" (0.40mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 2.00μin (0.051μm)
  • Package: Tape & reel (TR)
  • Height Above Board: 0.035" (0.88mm)
  • Mounting: SMD (SMT)
  • Mated Stacking Heights: 0.9mm
