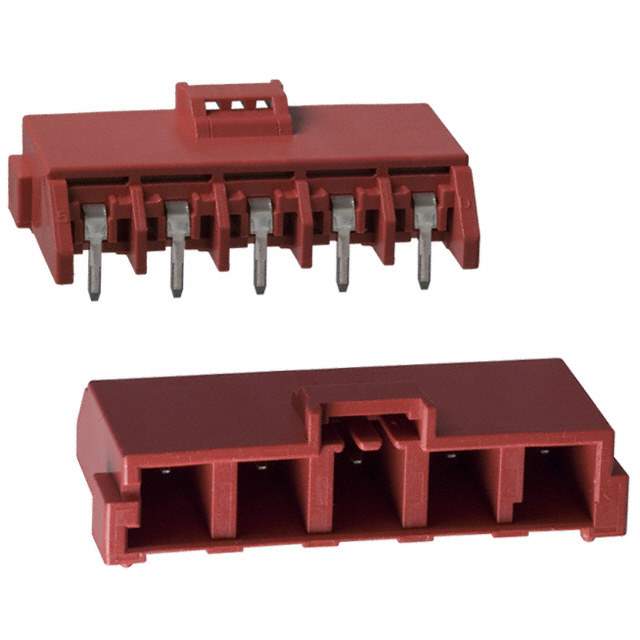

DF22L-5P-7.92DS Real Image
Same model may have multiple batches, images only for reference.

DF22L-5P-7.92DS

Part No DF22L-5P-7.92DS
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER R/A 5POS 7.92MM / Connector Header Through Hole, Right Angle 5 position 0.312" (7.92mm)
Datasheet
DF22L-5P-7.92DS Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series EnerBee™ DF22
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.312" (7.92mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.354" (9.00mm)
Contact Length - Post 0.146" (3.70mm)
Insulation Height 0.480" (12.20mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Material Copper Alloy
Insulation Material Polyamide (PA) , Nylon
Features Board Guide
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Red
Current Rating (Amps) 22A
Voltage Rating 1000V
Standard Package 100
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351034-DF22L-5P-7.92DS
Ultra Librarian 3D Model Ultra Librarian DF22L-5P-7.92DS CAD Model

Description

The Hirose Electric Co Ltd EnerBee™ DF22 series rectangular header male pin connector is a 5-position, board guide header with a square contact shape, through-hole, right-angle mounting type, and a shrouded-4 wall.

  • Pitch-Mating: 0.312" (7.92mm)
  • Contact Finish-Mating: Tin-Lead
  • Insulation Material: Polyamide (PA), Nylon
  • Color: Red
  • RoHS: Non-Compliant
  • Product Status: Obsolete
