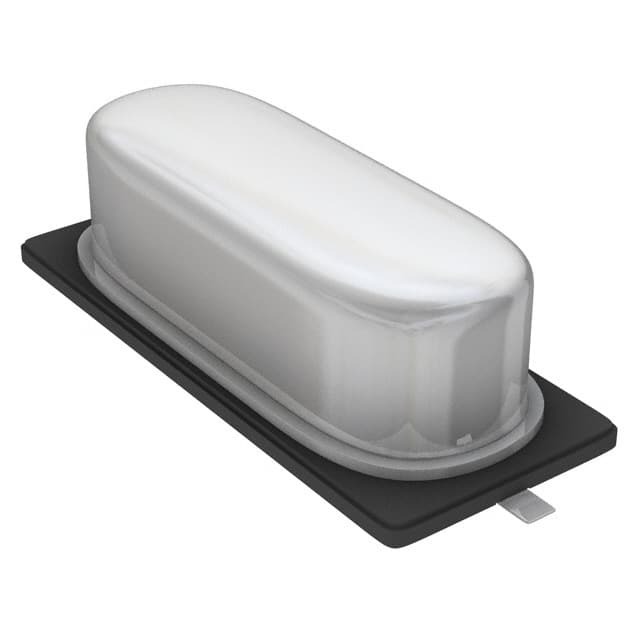

ABLS2-30.000MHZ-D4YF-T Abracon LLC
Same model may have multiple batches, images only for reference.

ABLS2-30.000MHZ-D4YF-T

Part No ABLS2-30.000MHZ-D4YF-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 30.0000MHZ 18PF SMD / 30 MHz ±30ppm Crystal 18pF 40 Ohms HC-49/US
Datasheet
ABLS2-30.000MHZ-D4YF-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLS2
Package Tape & Reel
Type MHz Crystal
Frequency 30 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.130" (3.30mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Other Names ABLS230000MHZD4YFT,Q9258823,535-9887-1,535-9887-2,535-9887-6
Standard Package 1,000
Win Source Part Number 1172934-ABLS2-30.000MHZ-D4YF-T
Ultra Librarian 3D Model Ultra Librarian ABLS2-30.000MHZ-D4YF-T CAD Model

Description

The ABLS2-30.000MHZ-D4YF-T MHz Crystal is a high-quality component manufactured by Abracon LLC.

  • Type: Surface Mount Device (SMD)
  • Mode: Fundamental
  • Frequency: 30 MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±30ppm
  • Load Capacitance: 18pF
  • ESR: 40 Ohms
  • Packaging: Tape and Reel
  • Standard Package: 1,000 units
